TH6x Optical Seam Tracking Sensor

Get more productive and reduce part scrap. TH6x reliably finds the weld joint in real time and guides the robot as fast as you can weld the part. Sturdy and unique, TH6x scans the joint in the XYZ axis to improve robot uptime and overall weld quality.

TH6x Seam Tracking Features and Benefits:

• Triple line laser sampling produces a reliable, real time tracking on the weld joint

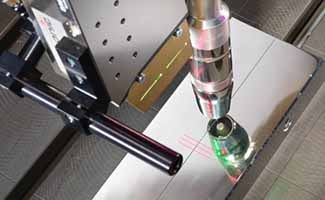

• Tracks on reflective surfaces like aluminum and stainless steel
• Contact-free and independent of both system and process
• Connects to robot or hard automation system with an Ethernet or analog connection
• Pre-loaded weld joints allow for easy programming and operation with just a few adjustments
• For use on MIG, TIG, and Sub-arc processes
• Works in non-welding applications such as gluing and cutting

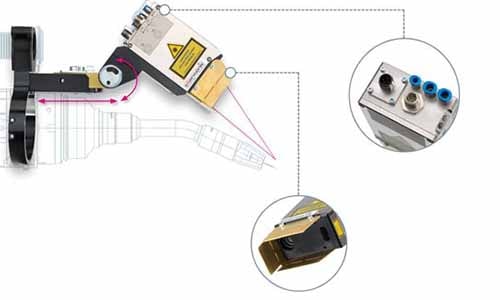

Laser Triangulation for More Accuracy

TH6x evaluates the current seam position, gap information, edge offset, and welding tool position relative to the surface.

These values are measured and recorded in real time then forwarded to the robot control to guide the welding torch through the joint, adding just milliseconds to the process.

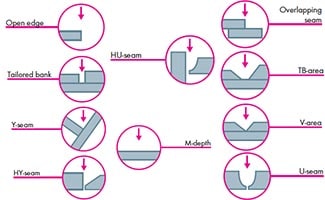

Pre-Loaded Weld Joints

The contact-free tracking of TH6x allows it to be able to seam track almost any joint shape. All of the commonly used welding joints are pre-loaded into the TH6x GUI Software for quick retrieval and easy, minimal programming.

Interfaces via Ethernet, Serial, or Analog to all major Robot OEMs or Hard Automation systems.

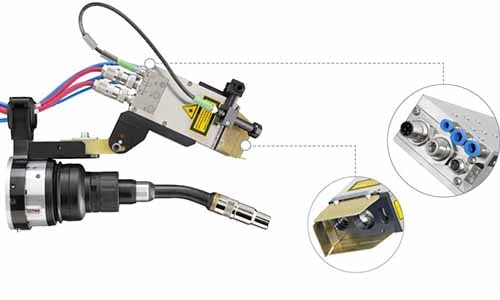

Seam Tracking 'Narrow-Gap' Welds

The only Optical Seam Tracking sensor capable of seam tracking Narrow-Gap Butt Welds with the TH6i through our unique greyscale camera. This feature combined with the green light above to recognize the butt joint, detect the contrast in brightness at the edge, and scan the joint precisely - even on reflective surfaces.

TH6x Seam Tracker Product Overview

TH6i Narrow-Gap Seam Tracking

TH6D Seam Tracking Comparison

TH6D Seam Tracking Round Shapes

TH6D comes in three options - the GF, CF, and KF. Each model differs in resolution and measuring range to precisely match up to your welding joint.

TH6D-GF is the most all-around model - capable of both thick and think sheet welding applications with a large field of view. For small seams and especially large seams, the CF and KF models respectively would be the more suitable fits. See Technical Specifications for more information.

Mounts for BINZEL Robot welding guns in all makes and styles available.

For Narrow-Gap Butt Welds with gaps as small as .02 millimeters, TH6i is the unique solution for real-time Seam Tracking of the weld joint to guide the robot through the process.

TH6i's greyscale camera pairs with an illuminated green light which decreases the brightness of the edges.

The greyscale camera then detects the illuminated surface with a visible contrast line the recognize and relay the butt weld joint course to the robot.

• How Seam Tracking Solutions Compare
• Why TH6x's Value Proposition is Truly Unique

• Optical Seam Tracking and Hard Automation

Ready to See the Seam Tracking Difference for Your Production Floor?

Get started today and see what the TH6D Seam Tracking difference can do for you today, and start meeting your production goals.

We'll be glad to demonstrate to you in person how TH6D's three-line sampling, real-time joint scanning, and powerful Graphical User Interface software program helps get your weld cell more product made faster with less rework.

Want to speak to someone immediately? Call us at 800-542-4867.
