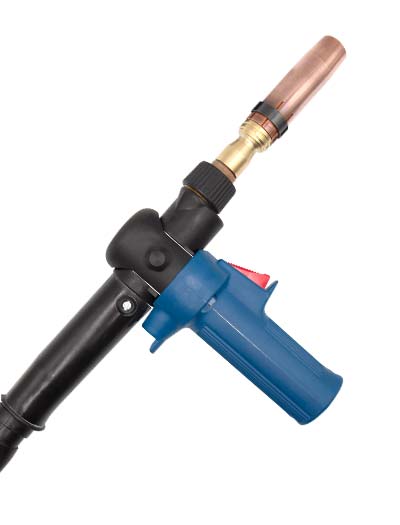

PPG/W Push-Pull MIG Guns
These torches are specially developed for the precise applications of aluminum welding, provide a reliable arc with a powerful but sturdy motor that regulates wire feed speed with exacting regulation. The handy pull cap allows for easy access to the drive roll motor for simple repair or adjustment.
PPG/W Features and Benefits:
- Available in air and water-cooled version up to 350 amp
- Consistent and problem-free wire feeding due to powerful pull motor
- Handy pull cap makes access drive roll motor for simple repair and adjustment
- Precise contact pressure regulation of the wire feeding rollers directly on the torch
- Wearing parts are identical to those of the tried and trusted MB torch series – minimized stocking
- Optimum torch cooling for long tool life with sturdy and rugged design
PPG/W Product Accessories:
Push-pull control box
For even better regulation of the wire feed, the Push-Pull Control Box helps to further regulate the push and pull of the wire on difficult to calibrate welding machines.
ABICOOLER 1300 water cooler
The mobile welding water cooler unit ABICOOLER 1300 is the ideal complementary system to equip with your water-cooled welding torch; for reliable water-cooled welding.
Recommended Reading:
Catalogs and Manual
replacement parts
|
Contact Tips & Holders | control box | diffusers | Nozzles | Neckliners & Liners | Swannecks |
||
| CONTACT TIPS & HOLDERS | PPG 26KD | PPW 401 D |
|
M6 Contact Tip Holder Spray Arc (22mm) |
142.0007 | 142.0008 |
|
M6 Contact Tip Holder Short Arc (25mm) |
142.0012 | 142.0013 |
|
M6 Standard Copper for Aluminum Wire .030" |
141.0001 | 141.0001 |
|
M6 Standard Copper for Aluminum Wire .035" |
141.0004 | 141.0004 |
|
M6 Standard Copper for Aluminum Wire .040" |
141.0006 | 141.0006 |
|
M6 Standard Copper for Aluminum Wire .045" |
141.0082 | 141.0082 |
|
M6 Standard Copper for Aluminum Wire .052" |
141.0019 | 141.0019 |
|
M6 Standard Copper for Aluminum Wire .062" |
141.0020 | 141.0020 |
|
M6 Standard Copper .024" |
140.0005 | 141.0005 |
|
M6 Standard Copper .030" |
140.0051 | 141.0051 |
|
M6 Standard Copper .035" |
140.0169 | 141.0169 |
|
M6 Standard Copper .040" |
140.0242 | 141.0242 |
|
M6 Standard Copper .045" |
140.0379 | 141.0379 |
|
M6 Standard Copper .052" |
140.0516 | 141.0516 |
|
M6 Standard Copper .062" |
140.0555 | 141.0555 |
|
M8 Contact Tip Holder Spray Arc (22mm) |
142.0082 | 142.0022 |
|
M8 Contact Tip Holders Short Arc (25mm) |
142.0026 | 142.0027 |
|
M8 Standard Copper for Aluminum Wire .030" |
141.0003 | — |
|
M8 Standard Copper for Aluminum Wire .035" |
141.0043 | 141.0043 |
|
M8 Standard Copper for Aluminum Wire .040" |
141.0008 | 141.0008 |
|
M8 Standard Copper for Aluminum Wire .045" |
141.0075 | 141.0075 |
|
M8 Standard Copper for Aluminum Wire .052" |
141.0055 | 141.0055 |
|
M8 Standard Copper for Aluminum Wire .062" |
141.0022 | 141.0022 |
|
M8 Standard Copper .030" |
140.0114 | 140.0114 |
|
M8 Standard Copper .035" |
140.0214 | 140.0214 |
|
M8 Standard Copper .040" |
140.0313 | 140.0313 |
|
M8 Standard Copper .045" |
140.0442 | 140.0442 |
|
M8 Standard Copper .052" |
140.0533 | 140.0533 |
|
M8 Standard Copper .062" |
140.0587 | 140.0587 |
| CONTROL BOX | PPG 26 KD | PPW 401 D |
|
Universal Power Supply |
080.9067 | 080.9067 |
| DIFFUSERS | PPG 26 KD | PPW 401 D |
|
Standard Temperature Diffuser |
018.0116 | 030.0145 |
|
High Temperature Diffuser |
284.0982 | 030.0037 |
| NOZZLES | PPG 26 KD | PPW 401 D |
|
Slip-on 14 mm Conical Nozzle |
145.0132 |
145.0132 |
|
Slip-on 16 mm Conical Nozzle |
145.0085 | 145.0085 |
|
Slip-on 16 mm Conical Heavy Duty Nozzle |
145.0086 | 145.0086 |
|
Slip-on 20 mm Cylindrical Nozzle |
145.0051 | 145.0051 |
|
Slip-on Spot Weld Nozzle |
145.0179 | 145.0179 |
| NECKLINERS & LINERS | PPG 26 KD | PPW 401 D |
|
Steel Wire Liner .024"-.030", 17' Long |
122.9001 | 122.9001 |
|
Steel Wire Liner .024"-.030", 28' Long |
122.9009 | 122.9009 |
|
Steel Wire Liner .035"-.045", 17' Long |
122.9007 | 122.9007 |
|
Steel Wire Liner .035"-.045", 28' Long |
122.9012 | 122.9012 |
|
Steel Wire Liner .052"-.062", 17' Long |
122.9003 | 122.9003 |
|
Steel Wire Liner .052"-.062", 28' Long |
122.9015 | 122.9015 |
|
Aluminum Wire Hi-Life Liner .030"-.045", 17' Long |
128.9040 | 128.9040 |
|
Aluminum Wire Hi-Life Liner .030"-.045", 28' Long |
128.9038 | 128.9038 |
|
Aluminum Wire Hi-Life Liner .052"-.062", 17' Long |
128.9041 | 128.9041 |
|
Aluminum Wire Hi-Life Liner .052"-.062", 28' Long |
128.9039 | 128.9039 |
|
Aluminum Wire Plastic Liner .035"-.045", 17' Long |
128.9004 | 128.9004 |
|
Aluminum Wire Plastic Liner .035"-.045", 28' Long |
128.9014 | 128.9014 |
|
Aluminum Wire Plastic Liner .052"-.062", 17' Long |
128.9007 | 128.9007 |
|
Aluminum Wire Plastic Liner .052"-.062", 28' Long |
128.9016 | 128.9016 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 17' Long |
127.9009 | 127.9009 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 28' Long |
127.9012 | 127.9012 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 | 127.9003 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 28' Long |
127.9011 | 127.9011 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 17' Long |
127.9006 | 127.9006 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 28' Long |
127.9010 | 127.9010 |
| SWANNECKS | PPG 26 KD | PPW 401 D |
|
Swanneck 180 Degree |
081.0002 | 091.0002 |
|
Swanneck 45 Degree |
014.0095 | 091.0001 |
Technical Specifications
Technical Specifications according to EN 60 974-7:
| Type: | PPG 26 KD |
PPW 401 D |
| Rating | Air-cooled | Water-cooled |
| CO2: | 240 A | 350 A |
| Mixed gases M21*: | 220 A | 320 A |
| Duty cycle (%): | 60 | 100 |
| Wire-Ø: | .024" -.062" 0.6 - 1.6mm |
.024" -.045" 0.6 - 1.2mm |
*according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). When pulse welding, reduce rating by 35%.
For PPW 401 D, recommended cooling capacity of water recirculator approx. 800 W. To protect cable assembly components from excessive heat build up we recommend a post welding cooling cycle of at least four minutes.
