CAT3 PRO Robotic Welding Gun Collision Mount

The Switch that Makes the Difference

The new generation of torch mounts - the CAT3 PRO provides even more stability and robustness compared to its predecessors. In the event of a collision, the CAT3 PRO ensures a reliable shutdown of the welding robot and thus prevents costly damage to the robot and equipment.

In addition, the precise resetting accuracy allows for a fast resumption of the production cycle, reducing downtimes to a minimum. The CAT3 PRO is the process-oriented evolution of the established robot mounts CAT2 and CAT2-HL. Our staple over-arm robot mounts CAT2 and CAT2-HL can be easily exchanged with CAT3 PRO without reprogramming the robot.

CAT3 PRO Features & Benefits:

• Reliable switching function
• Easy replacement and repair
• Easy installation on the welding robot
• 100% compatible with CAT2, CAT2-HL, and CAT3
• Practical, robust design results in better performance
• Precise reset accuracy (TCP) minimizes system downtime
• Spring forces XL, L, and M for optimum adaptation to the tool weight

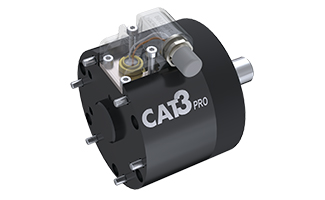

Improved Switch Function

The switch for the CAT3 mount is integrated into the housing for a fast and reliable response. Compression springs are available in various sizes (Medium, Large, and XL).

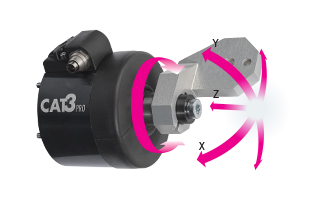

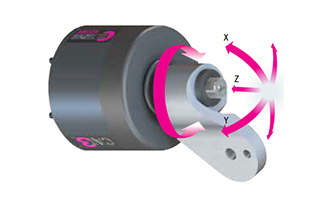

Multi-axis Deflection

The multi-axis deflection on CAT3 collision mounts means your robotic welding torch swanneck has complete protection in the event of a robot crash.

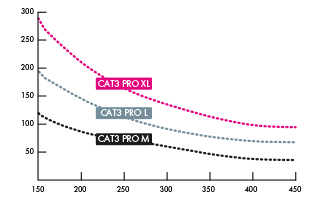

Optimal Release Force

The static release force (y-axis in Newton) of the different spring types as a function of the distance (x-axis in millimeters) is optimally matched to the robot torch neck size.
