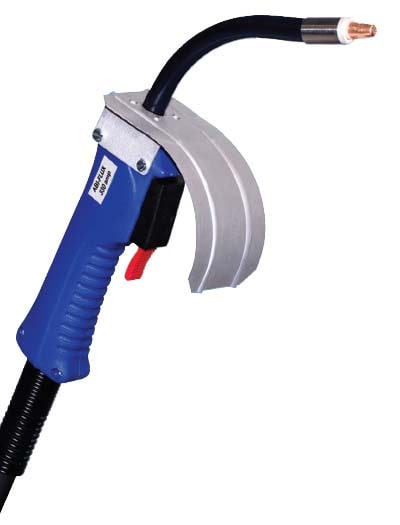

ABI-FLUX Self Shielded Welding Guns
![ABI-FLUX Self Shielded Welding Guns](/uploads/Content/USA/Pictures/Images_MIGMAG/ABIFLUX/ABI-FLUX-Flux-Cored-Welding-Gun-Hero.jpg)
The new generation of flux-cored self-shielding welding torches - suitable for extreme applications in pipeline construction, cladding and rail-joint welding, as well as repair work. Equipped with quick-change 360° rotatable torch neck, and a heavy-duty highly flexible steel core cable for applications down to -22°F (-30°C), the ABI-FLUX provides optimal handling and ease of operation.
ABI-FLUX Features and Benefits:
- Rated at 330 amps for up to .094" wire size
- Quick change torch necks with 360° rotation in a 45, 65, or 90-degree bend
- Ceramic insulation for extreme temperature durability
- Robust aluminum hand protection shield deflects heat from welding operator
- Extended trigger makes for easy welder use in the field
- Lightweight and durable cable construction
- High-quality BINZEL copper contact tips for long consumable life
Catalog, Ordering Chart, & Manual
Replacement Parts
CONTACT TIPS | ABI-FLUX |
M8 Standard Copper .045" |
140.0442 |
M8 Standard Copper .052" |
140.0533 |
M8 Standard Copper .062" |
140.0587 |
M8 Standard Copper .078" |
140.0653 |
M8 Standard Copper .094" |
140.0677 |
M8 Heavy Duty Copper .045" |
140.0445 |
M8 Heavy Duty Copper .062" |
140.0590 |
M8 Ultra Long Life Silver Plated .045" |
147.0445 |
M8 Ultra Long Life Silver Plated .062" |
147.0590 |
NECKLINERS & LINERS | ABI-FLUX |
Steel Wire Liner .045"-.062" |
122.D107 |
Steel Wire Liner .078"-.094" |
122.D115 |
Neck Liner .045"-.062" |
122.D112 |
Neck Liner .078"-.094" |
122.D113 |
|
Technical Specifications
Technical Specifications according to EN 60 974-7:
Type: | ABI-FLUX |
Rating | Air-cooled |
Amperage: | 330 A with self-shielding flux core wire |
Duty cycle (%): | 60 |
Wire-Ø: | .045" -.094" 1.2 - 2.4 mm |
*according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). When pulse welding, reduce rating by 35%.
