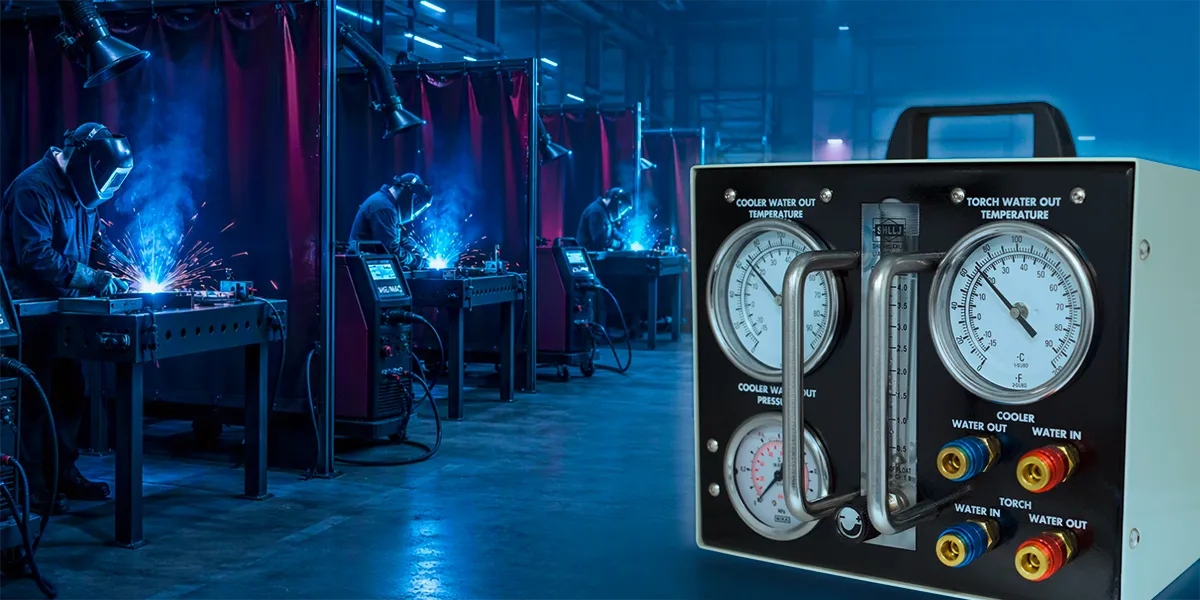

ABITESTER Water-Cooler and Torch Tester
Test smarter. Troubleshoot faster. Keep welding.
Reliable cooling is essential for water-cooled MIG welding torches. The ABITESTER Water-Cooler and Torch Tester from ABICOR BINZEL helps maintenance teams, service technicians, and welding professionals check the condition of water-cooled welding systems quickly and confidently. Designed for post-repair product inspection and on-site troubleshooting, this portable tester allows users to monitor coolant flow rate, system pressure, and inlet/outlet temperatures in real time.
Whether you are testing a repaired torch, checking a water cooler, or diagnosing performance issues during welding operation, the ABITESTER provides the key data needed to identify cooling restrictions, pressure deviations, or temperature increases before they lead to downtime, torch damage, or inconsistent weld quality.
Key Benefits
- Light and portable test unit for water-cooled MIG welding torches and cooling units
- Ideal for post-repair inspection and welding system troubleshooting
- Measures coolant flow, system pressure, and water temperature
- Helps verify whether the cooling circuit meets required operating conditions
- Supports preventive maintenance and reduces the risk of cooling-related downtime
- Includes hose connections for system testing and cooler-only testing
-

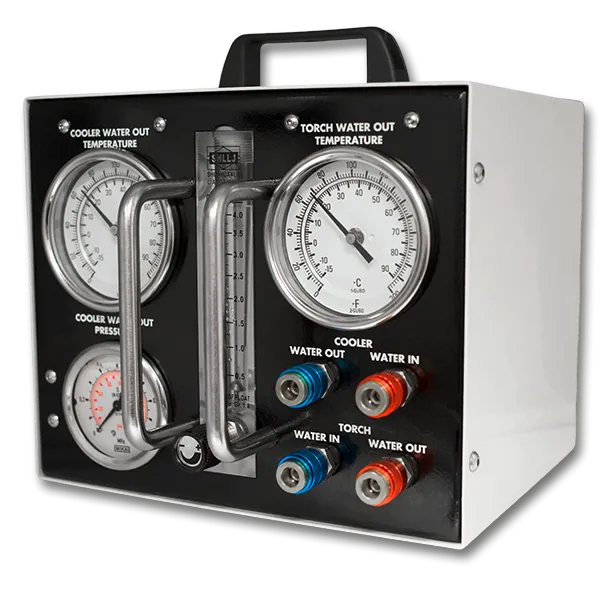

Monitor water-cooler and/or welding torch flow rate, system pressure, and in/out temperatures
Designed for Service, Maintenance, and Troubleshooting
The ABITESTER is built for practical use in welding shops, service departments, training centers, and industrial production environments. Technicians can connect the test unit to the water cooler and torch to check the complete cooling system, or use the supplied jumper hose to test the cooler only. This makes it easier to determine whether a cooling issue is related to the torch, the coolant circuit, hose routing, or the cooling unit itself.
Why Cooling System Testing Matters
In water-cooled welding systems, higher pressure does not automatically mean better cooling performance. What matters most is achieving the required coolant flow for the specific torch model and application. By measuring flow, pressure, and coolant temperature, the ABITESTER helps users make informed maintenance decisions and protect valuable welding equipment from overheating, premature wear, and avoidable service interruptions.
Frequently Asked Questions
The ABITESTER is used to test water-cooled welding torches and cooling units after repair or during troubleshooting. It helps measure coolant flow, system pressure, and water temperature.
Yes. The included black jumper hose allows technicians to loop the water circuit and test the cooling unit without connecting a torch.
The tester is ideal for welding service technicians, maintenance teams, repair departments, welding schools, and production facilities that use water-cooled MIG welding systems.
1. Cooler and Torch (system test)
- Connect hoses from the cooler to the quick connect fittings on the test unit marked “Cooler in” and “Cooler out”.
- Connect hoses from the torch to the quick connect fittings on the test unit marked “Torch in” and “Torch out”.
- Pay attention that the hoses are connected to the correct colored fittings. Note: Short hose jumpers with correct end fittings are provided with the tester, which requires that the test device to be placed near the cooler & torch. For longer distances between the cooler, torch and test device, an optional water hose extension kit is likely in use or can be purchased separately (example: BWC-029 (10’) or BWC-028 (30’).
2. Cooler only test
- Connect the hoses from the cooler to the quick connect fittings on the test unit marked “Cooler in” and “Cooler out”.
- Connect the short black jumper hose provided, between the “Torch in” and
- “Torch out” fittings on the tester for looping the water circuit.
Cooling System Operating Guidelines and Diagnostic Notes
For ABICOR BINZEL torches, the maximum allowable coolant pressure is 60 psi, and the minimum water flow rate varies by torch model (refer to the technical data in the respective user manual). Pressure and flow will vary depending on the torch model, torch length, extension-hose length, and hose routing. Higher pressure does not improve performance; achieving the minimum required flow rate is the critical factor.
For BINZEL torches operating within their design parameters, the typical temperature differential between ambient temperature and coolant return temperature is approximately +10°F. If return temperatures rise above this range while pressure and flow remain within specification, the cause is generally external to the torch and cooling system; assuming that the cooling‑unit heat exchanger is clean, and the correct, non-degraded coolant is in use. Common contributors to excessive heating include exceeding the torch’s amperage rating, pulse welding, hot shielding‑gas mixtures, reflective heat, or confined welding environments – all of which can de‑rate torch-cooling performance.
Potential solutions include selecting a higher‑amperage torch or neck, adjusting weld parameters, modifying the application setup, or upgrading from a basic cooler to a refrigerated chiller to maintain stable coolant temperatures under demanding conditions.
