SmartRay's JOSY 3D Weld Inspection
SmartRay's JOSY uses combined hardware and software packages that utilize 3D sensors with an advanced algorithmic process to quickly and reliably inspect weld dimensions for compliance and weld defects for rework.
SmartRay JOSY 3D Weld Inspection Features and Benefits:
- Automates weld inspection process to increase production speed
- Makes the weld inspection process more reliable and accurate
- Ultra-precise 3D weld joint scan in a fast and reliable hardware/software package
- Able to measure both weld dimensions and detect weld defects to micron levels of detail
- High speed scanning at a rate of 8 KHz and up to 400 mm/second
- Allows for multiple sensor heads to connect to a single software depending on application
- A variety of sensor head designs allows for the SmartRay solution to access complex parts
SmartRay JOSY 3D Weld Inspection Features:

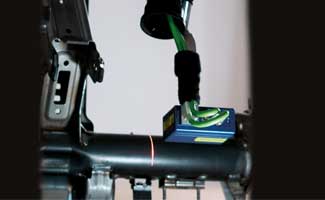

Easily Installs to 6-axis Robot
SmartRay easily mounts to your 6-axis robot to allow for fast and reliable scanning of your weld joints to speed up your production line.

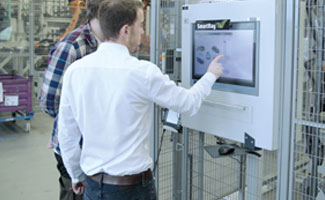

Expert Support in Planning and Install
Reliable and pre-planned installation includes pre-commissioning, technical and organizational coordination, and post-commissioning.
Precise and Reliable Joint Inspection
Robust and detailed JOSY "Joining System" offers an all-in-one solution for non-contact, visual 3D inspection to meet rigid Quality Assurance needs.

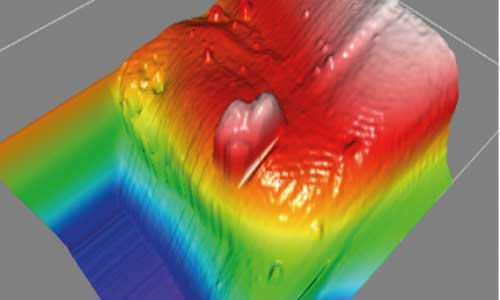

3D Scan of Weld Dimensions and Defects:
Evaluation Parameters and Quality
Measuring various parameters of a weld to ensure its quality is an important feature of SmartRay; Some of the most important parameters are;
- Length
- Width
- Effective throat thickness
- Cross-sectional area
- Toe
- Position
- Asymmetry
- Leg length
- Concavity and convexity
Overall, SmartRay provides comprehensive data about weld quality to help ensure the integrity of welded structures.
Defects & Inconsistencies Identified
SmartRay recognizes the importance of identifying and addressing weld defects to ensure the quality and safety of welded structures. Defects that are most common for SmartRay to detect;
- Pores, macropores, micropores, and porosity
- Holes and undercuts
- Incomplete groove fill
- Overlap
- Spatter
SmartRay JOSY Videos:
Real World Application: Battery Box Inspection with SmartRay
Weld Inspection Methods and Technology eBook
In this eBook, our team of experts break down the numerous types of weld inspection that exist today, beyond the standard form of visual inspections.
It is within these various types that automated systems will play a large role.
The ability to automate the weld inspection process has been an integral part in seeing key parts of welding become easier and more efficient.
Check out the full eBook here - Weld Inspection Methods and Technology

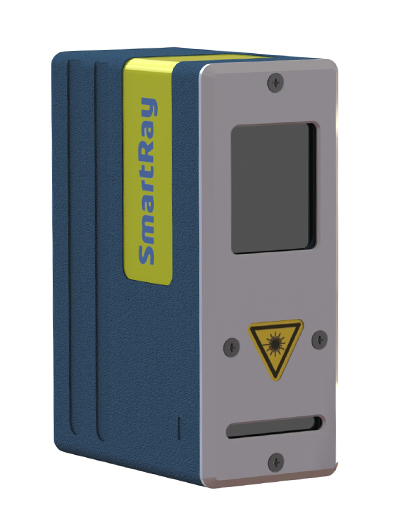

Technical Specifications (Sensors)
| SmartRay SR1200 | SmartRay ECCO 95 | |
| Scan Rate: | 2 kHz - 4 kHz | 2 kHz - 8 kHz |
| Inspection Speed: | 130 - 200 mm/s | 130 - 400 mm/s |
| Max Points 3D Profile: | 480 | 1920 |
| Lateral Resolution: | 39 µm - 75 µm | 5.8 µm - 18 µm |
| Weight: | 330 g | 490 g |
| Dimensions (Volume): | 205 cm3 | 386 cm3 |
| Protection: | IP 65 | IP 65 |
| Reflection Filter: | Yes | Yes |
| Laser Class: | 2 | 2 (Optional 3) |
Technical Specifications (Controller)
| Design: | Up to 2 Sensors per Unit / Distributed Architecture |
| Durability Integration: |
Fanless Design IP 65 Protected Integrated UPS |
| Fieldbus Interfaces: | Ethernet/IP, ProfitNet, Ethernet, Devicenet |
| Exchangeability: | Active Backups, Remote Access |
