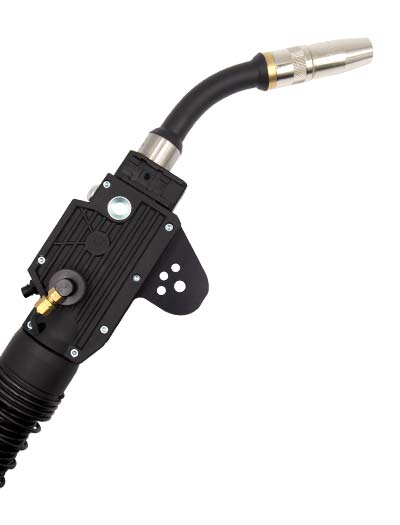

ROBO WH Water-cooled Robotic MIG Guns
High-efficiency robotic MIG welding
The water-cooled fast neck change MIG welding gun ROBO WH / WH-PP enables the complete torch neck to be replaced either manually or automatically – thanks to the innovative interface technology on the changing body. This means torches of the same design can be replaced in seconds for maintenance purposes, or torches with special geometries for different welding positions can be changed as required.
Equally, the replacement of the contact tip and gas nozzle and the monitoring of the Tool Center Point takes place outside of the welding cell, thus increasing the availability of the system and reducing downtimes.
ROBO WH Features & Benefits:
- Fast torch neck change and fast replacement of wear parts increase system availability
- Flexible adaptation to changing welding tasks
- Also available as a push-pull system for precise wire feeding
- Liquid-cooled up to 600 A with heavy-duty, directly cooled WH 600 swanneck for extreme welding work
- Multiple torch neck options available in various bends and lengths for increased part accessibility and efficiency
ROBO WH Features at a Glance:
Quick Neck Change with Wire Cutter
ROBO WH comes equipped with a quick neck change locking mechanism that features an integrated wire cutter for the fastest and most time-efficient torch neck change for any robotic welding torch in the industry. Replace your torch neck in seconds and get back to production.

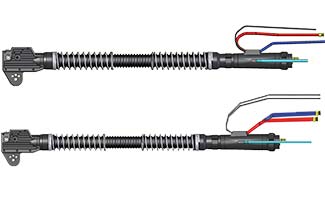

Two Cable Assembly Options
BINZEL Water-cooled Robotic MIG Guns come in two cable options to meet your needs: a Power Water cable that runs coolant along with the cable interior for improved cooling and heat transmission, or a Hybrid assembly with a failsafe feature in the rare event of a leak.

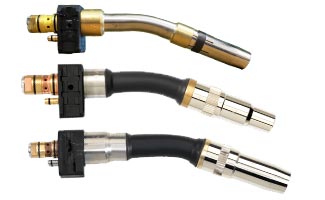

Multiple Neck Options to Match the Job
ROBO WH torch necks range from 320 to 600 amp in several bends and lengths to meet your welding operation's unique needs. All ROBO WH robotic MIG guns use the high-quality, durable ABICOR BINZEL consumables, including nickel-plated nozzles and high-grade contact tips.
ROBO WH Product Videos:
ROBO WH Product Overview
Miller Fabrication Solutions Testimonial
ROBO WH Torch Packages:
Through-arm Torch Packages
Top-down shows swannecks 242D, 500T, 652T, and W 600 models. ROBO WH with iSTM solid mount and iCAT collision mount interface shown. Additional torch features are also available. Please see ordering charts for details or contact an ABICOR BINZEL Sales Rep or Product Specialist.
Over-arm Torch Packages

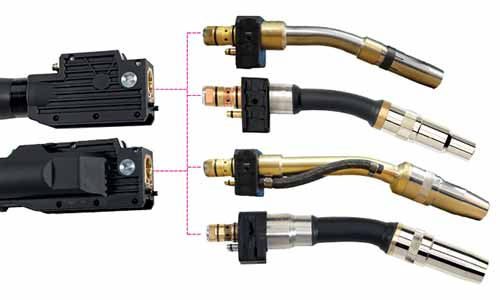

ROBO WH and WHPP push-pull housing shown in descending order. WH with CAT3 collision mount available along with no collision mount. Please see the catalog and ordering charts for details or contact an ABICOR BINZEL Sales Rep or Product Specialist.
Recommended Reading:
Through-arm ROBO WH Torch Packages
- ABB IRB 1600ID
- ABB IRB 2600ID, 1520ID, and 1660ID
- Fanuc AM iC Series with Solid Mount iSTM
- Fanuc AM iC Series with Collision Mount iCAT
- Fanuc AM iD Series with Solid Mount iSTM
- Fanuc AM iD Series with Collision Mount iCAT
- Kuka Hollow Wrist Series with Solid Mount iSTM
- Kuka Hollow Wrist Series with Collision Mount iCAT
- Motoman EA & MA 1400N/1900N with Collision Mount iCAT
- Motoman MA 1440/2010 & AR 1440 with Collision Mount iCAT
- OTC Daihen AX-V4/AII-B4 with Collision Mount iCAT
- Panasonic TM Series with Collision Mount iCAT
Over-arm ROBO WH Torch Packages
- ROBO WH Ordering Chart
- CAT3 Collision Mount Ordering Chart
- Over-arm Collision Mount Flange List (CAT2 & CAT3)
Replacement Parts
|
Contact Tips | Tip Holders & Diffusers | Nozzles | Liners | Swannecks | Repair Kits |
||||
|
WH 242D |
WH 500T | WH 652T | WH 600 | |
|
M6 Heavy Duty Copper .030" |
140.0054 | 140.0054 | — | — |
|
M6 Heavy Duty Copper .035" |
140.0172 | 140.0172 | — | — |
|
M6 Heavy Duty Copper .040" |
140.0245 | 140.0245 | — | — |
|
M6 Heavy Duty Copper .045" |
140.0382 | 140.0382 | — | — |
|
M6 Heavy Duty Copper .045" Tight Tolerance |
140.1287 | 140.1287 | — | — |
|
M6 Oversized Copper for Aluminum .030" |
141.0001 | 141.0001 | — | — |
|
M6 Oversized Copper for Aluminum .035" |
141.0004 | 141.0004 | — | — |
|
M6 Oversized Copper for Aluminum .045" |
141.0082 | 141.0082 | — | — |
|
M6 Oversized Copper for Aluminum .062" |
141.0020 | 141.0020 | — | — |
|
M6 Ultra Long Life Silver Plated .030" |
147.0054 | 147.0054 | — | — |
|
M6 Ultra Long Life Silver Plated .035" |
147.0172 | 147.0172 | — | — |
|
M6 Ultra Long Life Silver Plated .045" |
147.0382 | 147.0382 | — | — |
|
M8 Heavy Duty Copper .030" |
— |
140.0117 |
140.0117 | — |
|
M8 Heavy Duty Copper .035" |
— | 140.0217 | 140.0217 | — |
|
M8 Heavy Duty Copper .040" |
— | 140.0316 | 140.0316 | — |
|
M8 Heavy Duty Copper .045" |
— | 140.0445 | 140.0445 | — |
|
M8 Heavy Duty Copper .052" |
— | 140.0536 | 140.0536 | — |
|
M8 Heavy Duty Copper .062" |
— | 140.0590 | 140.0590 | — |
|
M8 Oversized Copper for Aluminum .030" |
— | 141.0003 | 141.0003 | — |
|
M8 Oversized Copper for Aluminum .035" |
— | 141.0043 | 141.0043 | — |
|
M8 Oversized Copper for Aluminum .045" |
— | 141.0075 | 141.0075 | — |
|
M8 Oversized Copper for Aluminum .062" |
— | 141.0022 | 141.0022 | — |
|
M8 Ultra Long Life Silver Plated .030" |
— | 147.0117 | 147.0117 | — |
|
M8 Ultra Long Life Silver Plated .035" |
— | 147.0217 | 147.0217 | — |
|
M8 Ultra Long Life Silver Plated .040" |
— | 147.0316 | 147.0316 | — |
|
M8 Ultra Long Life Silver Plated .045" |
— | 147.0445 | 147.0445 | — |
|
M8 Ultra Long Life Silver Plated .052" |
— | 147.0536 | 147.0536 | — |
|
M8 Ultra Long Life Silver Plated .062" |
— | 147.0590 | 147.0590 | — |
|
M10 Heavy Duty Copper .035" |
— | — | 140.1248 | — |
|
M10 Heavy Duty Copper .040" |
— | — | 140.0348 | — |
|
M10 Heavy Duty Copper .045" |
— | — | 140.0481 | — |
|
M10 Heavy Duty Copper .045" Tight Tolerance |
— | — | 140.1261 | — |
|
M10 Heavy Duty Copper .052" |
— | — | 140.0547 | — |
|
M10 Heavy Duty Copper .062" |
— | — | 140.0616 | — |
|
M10 Ultra Long Life Silver Plated .045" |
— | — | 147.0481 | — |
|
M10 Ultra Long Life Silver Plated .052" |
— | — | 147.0547 | — |
|
M10 Ultra Long Life Silver Plated .062" |
— | — | 147.0616 | — |
|
M12 Heavy Duty Copper .040" |
— | — | — | 140.1605 |
|
M12 Heavy Duty Copper .045" |
— | — | — | 140.1563 |
|
M12 Heavy Duty Copper .052" |
— | — | — | 140.1564 |
|
M12 Heavy Duty Copper .062" |
— | — | — | 140.1565 |
|
M12 Ultra Long Life Silver Plated .045" |
— | — | — | 147.1563 |
|
M12 Ultra Long Life Silver Plated .052" |
— | — | — | 147.1564 |
|
M12 Ultra Long Life Silver Plated .062" |
— | — | — | 147.1565 |
|
M12 Ultra Long Life Heavy Duty Silver Plated .045" |
— | — | — | 147.6563 |
|
M12 Ultra Long Life Heavy Duty Silver Plated .052" |
— | — | — | 147.6564 |
|
M12 Ultra Long Life Heavy Duty Silver Plated .062" |
— | — | — | 147.6565 |
|
WH 242D |
WH 500T |
WH 652T | WH 600 | |
|
M6 Contact Tip Holder |
142.0149* | 142.0133 | — | — |
|
M8 Contact Tip Holder |
— | 142.0117* | 142.0148 | — |
|
M10 Contact Tip Holder |
— | — | 142.0145* | — |
|
M12 Contact Tip Holder |
— | — | — | 142.0214* |
|
Cylindrical Insulator |
146.0066* | 146.0054* | — | — |
|
Hi-Temperature Insulator |
— | 146.0059 | 146.0056* | — |
|
Diffuser/Insulator |
284.0138 | 943.0170 | — | 146.0079* |
|
Insulator Short |
— | 146.0064 | 146.9060 | — |
|
Ceramic Insulator |
— | 146.0070 | 146.0069 | — |
|
Diffuser/Insulator Short |
— | 943.0284 | — | — |
| *Factory Standard | ||||
|
WH 242D |
WH 500T |
WH 652T | WH 600 | |
|
Slip-on 11 mm Recessed Bottleform Nozzle |
145.0159 | — | — | — |
|
Slip-on 13 mm Recessed Conical Nozzle |
145.0135 | — | — | — |
|
Slip-on 13 mm Stickout Conical Nozzle, 57 mm Long |
145.0473 | — | — | — |
|
Slip-on 13 mm Stickout Conical Nozzle, 59 mm Long |
145.0547 | — | — | — |
|
Slip-on 15.5 mm Recessed Conical Nozzle |
145.0090* | — | — | — |
|
Slip-on 15.5 mm Stickout Conical Nozzle |
145.0472 | — | — | — |
|
Threaded 13 mm Recessed Bottleform Nozzle |
— | 145.0479 | — | — |
|
Threaded 15.5 mm Recessed Conical Nozzle Small |
— | 145.0553 | — | — |
|
Threaded 15.5 mm Recessed Conical Nozzle |
— | 145.0668 | — | — |
|
Threaded 15.5 mm Recessed Bottleform Nozzle, 72 mm Long |
— | 145.0466 | — | — |
|
Threaded 15.5 mm Recessed Bottleform Nozzle, 75.5 mm Long |
— | 145.0544* | — | — |
|
Threaded 15.5 mm Recessed Bottleform Nozzle, 77 mm Long |
— | 145.0480 | — | — |
|
Threaded 15.5 mm Recessed Bottleform Nozzle, 85.5 mm Long |
— | 145.0554 | — | — |
|
Threaded 15.5 mm Stickout Bottleform Nozzle |
— | 145.0520 | — | — |
|
Threaded 20 mm Stickout Cylindrical Nozzle |
— | 145.0561 | — | — |
|
Threaded 18 mm Flush Conical Nozzle |
— | — | 145.0606 | 145.0689 |
|
Threaded 18 mm Recessed Conical Nozzle |
— | — | 145.0574* | — |
|
Threaded 21.5 mm Flush Conical Nozzle |
— | — | — | 145.0686 |
|
Threaded 21.5 mm Recessed Conical Nozzle |
— | — | 145.0575 | 145.0688* |
|
Threaded 21.5 mm Stickout Conical Nozzle |
— | — | — | 145.0687 |
| *Factory Standard | ||||
|
WH 242D |
WH 500T |
WH 652T | WH 600 | |
| *Cable liners vary by robot package and feeder model. Please review the gun assembly drawings included in the torch package or contact Product Support. | ||||
|
Steel Neckliner .035" - .045", 180/22 Degree Standard |
149.0068 | 149.0282 | 149.0107 | 149.0270 |
|
Steel Neckliner .035" - .045", 45 Degree Standard |
149.0003 | 149.0300 | 149.0107 | 149.0270 |
|
Steel Neckliner .052" - .062", 180/22 Degree Standard |
— | 149.0283 | 149.0108 | 149.0271 |
|
Steel Neckliner .052" - .062", 45 Degree Standard |
— | 149.0410 | 149.0108 | 149.0271 |
|
Steel Wire Liner Red .035" - .045", 8' Long Direct Mount |
SI4-3545-8PT | SI4-3545-8PT | SI4-3545-8PT | SI4-3545-8PT |
|
Steel Wire Liner Red .035" - .045", 17' Long Direct Mount |
SI4-3545-17PT | SI4-3545-17PT | SI4-3545-17PT | SI4-3545-17PT |
|
Steel Wire Liner Red .052" - .062", 8' Long Direct Mount |
SI4-5262-8PT | SI4-5262-8PT | SI4-5262-8PT | SI4-5262-8PT |
|
Steel Wire Liner Red .052" - .062", 17' Long Direct Mount |
SI4-5262-17PT | SI4-5262-17PT | SI4-5262-17PT | SI4-5262-17PT |
| Return to Top | ||||
|
WH 242D |
WH 500T |
WH 652T | WH 600 | |
|
Swanneck 180 Degree |
962.1314 | 962.1550 | 962.1353 | 962.1745 |
|
Swanneck 180 with Nozzle Sense |
Call | 962.9955.US | 962.1374 | 962.1769 |
|
Swanneck 22 Degree |
962.1315 | 962.1549 | 962.1365 | 962.1746 |
|
Swanneck 22 Degree with Nozzle Sense |
Call | 962.9945.US | 962.1375 | 962.1770 |
|
Swanneck 45 Degree |
962.1316 | 962.1532 | 962.1366 | 962.1748 |
|
Swanneck 45 Degree with Nozzle Sense |
Call | 962.9948.US | 962.1376 | 962.1772 |
| REPAIR KITS | WH 242D | WH 500T | WH 652T | WH 600 |
|
Swanneck Repair Kit |
— | 962.9155.US | — | — |
Technical Specifications
Technical data according to EN 60 974-7:
| WH 242D | WH 500T | WH 652T | WH 600 | |
| Cooling: | water-cooled | water-cooled | water-cooled | water-cooled |
| Rating: |
320 A CO2 280 A Mixed gases M 21 (EN ISO 14175) |
550 A CO2 500 A Mixed gases M 21 (EN ISO 14175) |
600 A CO2 550 A Mixed gases M 21 (EN ISO 14175) |
600 A CO2 550 A Mixed gases M 21 (EN ISO 14175) |
| Duty cycle: | 100 % | 100 % | 100 % | 100 % |
| Wire-Ø: | 0.8 - 1.2 mm | 0.8 - 1.2 mm | 0.9 - 1.6 mm | 0.9 - 1.6 mm |
Have Production Goals and Your Current Robotic Torch Not Getting it Done?
Get started today and see what the combination of a superior torch cable design, durable and long-lasting torch consumables, and a sturdy front end build can do to get your products welded faster, better, and at less cost.
You can schedule an in-person demonstration of our robotic torch welding solutions, get a quote based on your unique needs, or contact us for additional information.
Want to speak to someone immediately? Call us at 800-542-4867.
