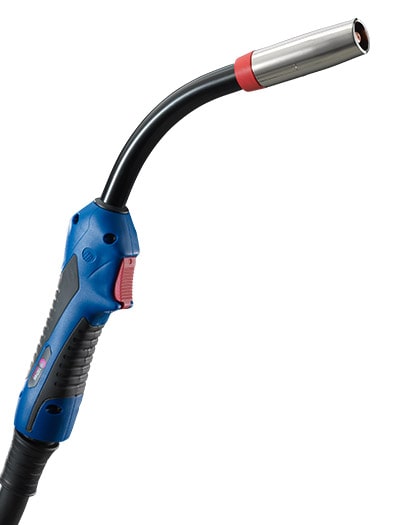

ABIMIG® A Lightweight MIG Guns
The ultra-lightweight ABIMIG A MIG gun offers flexibility in welding perfection. ABIMIG A is equipped standard with a ball joint socket base and lightweight Bikox® cable assembly for ergonomic and relaxed use in every welding position.
ABIMIG A Features and Benefits:
- Available in 200, 300, and 400 amp versions
- Compatible with all major power source types (Lincoln®, Miller®, Tweco®, Hobart®, Euro, etc.)
- Lightweight Bikox cable assembly that reduces torch weight up to 50% compared to others
- Slim, ergonomic handle for improved working comfort
- Ball socket handle base improves wrist flexibility
- Combined diffuser/tip holder reduces part inventory and simplifies maintenance
- Threaded, thermally insulated gas nozzle increases the service life of the torch
- High-quality BINZEL consumables including diffusers, contact tips, and high-grade nozzles
ABIMIG A Product Videos:
BIKOX Lightweight Cable Explainer
How-To: Connector Kit Replacement
Testimonial: SpoolTech
How-To: Replace a MIG Wire Liner
Recommended Reading:
Technical Specifications (EN 60 974-7):
| Type: | ABIMIG A 255 | ABIMIG A 355 |
ABIMIG A 415 |
| Rating | Air-cooled | Air-cooled | Air-cooled |
| CO2: | 230 A | 340 A | 400 A |
| Mixed gases M21*: | 220 A | 310 A | 355 A |
| Duty cycle (%): | 60 | 60 | 60 |
| Wire Ø (mm): | 0.8 - 1.2 | 0.9 - 1.6 | 0.9 - 2.4 |
* according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). When pulse welding, reduce rating by 35%.
| CONTACT TIPS & HOLDERS | ABIMIG A 255 | ABIMIG A 355 | ABIMIG A 415 |
|
M6/M8 Threaded Contact Tip Holder |
H2T-6-C | H3T-8-C | H4T-8-C |
|
M6 Tapered Contact Tip Holder |
— | H3T-6-C | — |
|
M6 Standard Copper .030" |
140.0051 | — | — |
|
M6 Standard Copper .035" |
140.0169 | — | — |
|
M6 Standard Copper .040" |
140.0242 | — | — |
|
M6 Standard Copper .045" |
140.0379 | — | — |
|
M6 Tapered Standard Copper .030" |
— | 140.1532 | — |
|
M6 Tapered Standard Copper .035" |
— | 140.1533 | — |
|
M6 Tapered Standard Copper .045" |
— | 140.1534 | — |
|
M6 Oversized Copper for Aluminum .030" |
141.0001 | — | — |
|
M6 Oversized Copper for Aluminum .035" |
141.0004 | — | — |
|
M6 Oversized Copper for Aluminum .040" |
141.0060 | — | |
|
M6 Oversized Copper for Aluminum .045" |
141.0082 | — | — |
|
M6 Ultra Long Life Silver Plated .030" |
147.0054 | — | — |
|
M6 Ultra Long Life Silver Plated .035" |
147.0172 | — | — |
|
M6 Ultra Long Life Silver Plated .045" |
147.0382 | — | — |
|
M6 Tapered Ultra Long Life Silver Plated .035" |
— | 147.1609 | — |
|
M6 Tapered Ultra Long Life Silver Plated .045" |
— | 147.1610 | — |
|
M8 Standard Copper .030" |
— | 140.0114 | 140.0114 |
|
M8 Standard Copper .035" |
— | 140.0214 | 140.0214 |
|
M8 Standard Copper .040" |
— | 140.0313 | 140.0313 |
|
M8 Standard Copper .045" |
— | 140.0442 | 140.0442 |
|
M8 Standard Copper .052" |
— | 140.0533 | 140.0533 |
|
M8 Standard Copper .062" |
— | 140.0587 | 140.0587 |
|
M8 Standard Copper .078" |
— | 140.0653 | 140.0653 |
|
M8 Standard Copper .094" |
— | 140.0677 | 140.0677 |
|
M8 Oversized Copper for Aluminum .030" |
— | 141.0003 | 141.0003 |
|
M8 Oversized Copper for Aluminum .035" |
— | 141.0043 | 141.0043 |
|
M8 Oversized Copper for Aluminum .040" |
— | 141.0008 | 141.0008 |
|
M8 Oversized Copper for Aluminum .045" |
— | 141.0075 | 141.0075 |
|
M8 Oversized Copper for Aluminum .052" |
— | 141.0055 | 141.0055 |
|
M8 Oversized Copper for Aluminum .062" |
— | 141.0022 | 141.0022 |
|
M8 Heavy Duty Copper .030" |
— | 140.0117 | 140.0117 |
|
M8 Heavy Duty Copper .035" |
— | 140.0217 | 140.0217 |
|
M8 Heavy Duty Copper .040" |
— | 140.0316 | 140.0316 |
|
M8 Heavy Duty Copper .045" |
140.0445 | 140.0445 | |
|
M8 Heavy Duty Copper .052" |
— | 140.0536 | 140.0536 |
|
M8 Heavy Duty Copper .062" |
— | 140.0590 | 140.0590 |
|
M8 Heavy Duty Copper .078" |
— | 140.0656 | 140.0656 |
|
M8 Heavy Duty Copper .094" |
— | 140.0679 | 140.0679 |
|
M8 Ultra Long Life Silver Plated .030" |
— | 147.0117 | 147.0117 |
|
M8 Ultra Long Life Silver Plated .035" |
— | 147.0217 | 147.0217 |
|
M8 Ultra Long Life Silver Plated .040" |
— | 147.0316 | 147.0316 |
|
M8 Ultra Long Life Silver Plated .045" |
147.0445 | 147.0445 | |
|
M8 Ultra Long Life Silver Plated .052" |
— | 147.0536 | 147.0536 |
|
M8 Ultra Long Life Silver Plated .062" |
— | 147.0590 | 147.0590 |
|
M8 Ultra Long Life Silver Plated .078" |
— | 147.0656 | 147.0656 |
|
M10 Theaded Contact Tip Holder/Diffuser Combo |
— | — | H4T-10-C |
|
M10 Heavy Duty Copper .035" |
— | — | 140.1248 |
|
M10 Heavy Duty Copper .040" |
— | — | 140.0348 |
|
M10 Heavy Duty Copper .045" |
— | — | 140.0481 |
|
M10 Heavy Duty Copper .052" |
— | — | 140.0547 |
|
M10 Heavy Duty Copper .062" |
— | — | 140.0616 |
|
M10 Heavy Duty Copper .078" |
— | — | 140.0665 |
|
M10 Heavy Duty Copper Silver Plated .094" |
— | — | 140.0698 |
|
M10 Ultra Long Life Silver Plated .045" |
— | — | 147.0481 |
|
M10 Ultra Long Life Silver Plated .052" |
— | — | 147.0547 |
|
M10 Ultra Long Life Silver Plated .062" |
— | — | 147.0616 |
|
M10 Ultra Long Life Silver Plated .094" |
— | — | 147.0698 |
| NOZZLES | ABIMIG A 255 | ABIMIG A 355 | ABIMIG A 415 |
|
Threaded 10 mm Tapered Nozzle |
— | 142.D402 | — |
|
Threaded 13 mm Recessed Conical Nozzle |
145.D015 | 145.D025 | 145.D243 |
|
Threaded 13 mm Flush Conical Nozzle |
145.D013 | — | — |
|
Threaded 14 mm Flush Nozzle |
— | 145.D023 | — |
|
Threaded 14 mm Recessed Nozzle |
145.D016 | — | — |
|
Threaded 16 mm Recessed Nozzle |
145.D011 | 145.D026 | 145.D244 |
|
Threaded 16 mm Recessed Heavy Duty Nozzle |
— | — | 145.D241 |
|
Threaded 16 mm Flush Nozzle |
— | 145.D022 | — |
|
Threaded 19 mm Recessed Nozzle |
— | 145.D021 | 145.D245 |
| LINERS | ABIMIG A 255 | ABIMIG A 355 | ABIMIG A 415 |
|
Steel Wire Liner Insulated .035"-.045", 17' Long |
SI-3545-17PT | SI-3545-17PT | SI4-3545-17PT |
|
Steel Wire Liner Insulated .052"-.062", 17' Long |
— | SI-5262-17PT | SI4-5262-17PT |
|
Steel Wire Liner Insulated .078"-.094", 17' Long |
— | — | SI4-7894-17PT |
|
Steel Wire Liner Insulated .035"-.045", 28' Long |
SI-3545-28PT | SI-3545-28PT | SI4-3545-28PT |
|
Steel Wire Liner Insulated .052"-.062", 28' Long |
— | SI-5262-28PT | SI4-5262-28PT |
|
Steel Wire Liner Insulated .078"-.094", 28' Long |
— | — | SI4-7894-28PT |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 | 127.9003 | 127.9003 |
|
Stainless Steel Liner Wire Liner C-TFE .052"-.062", 17' Long |
127.9006 | 127.9006 | 127.9006 |
|
Liner Combi PA .035"-.045", 17' Long |
128.9047 | 128.9047 | 128.9047 |
|
Liner Combi PA .052"-.062", 17' Long |
— | 128.9050 | 128.9050 |
| SWANNECKS | ABIMIG A 255 | ABIMIG A 355 | ABIMIG A 415 |
|
Threaded 60 Degree Standard |
767.0108 | 767.0109 | 767.0140 |
