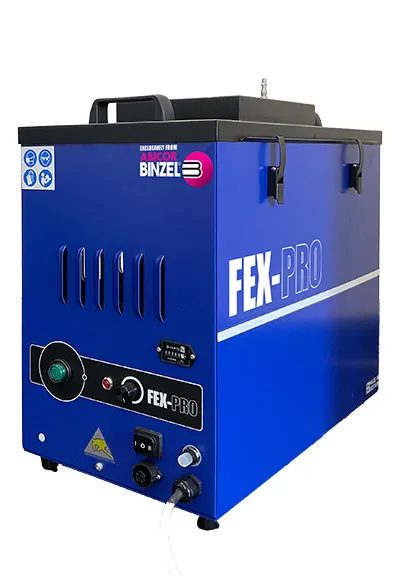

High Efficiency Mobile Fume Filtering: FEX PRO
Portable, simple to maintain, and quiet is the most effective way to capture welding fumes at the source.
A reliable, lightweight, economical and efficient solution featuring a cleanable pre-filter and brushless motor making the FEX PRO a lightweight performance solution for TIG and light MIG source extraction applications.
FEX PRO Features & Benefits:
- TIG and light MIG fume extraction for single torch fume extraction
- Lightweight and small form factor for high mobility
- Adjustable power lets the welder use the right amount of power for parameter and weld joint
- Automatic Start/Stop function reduces operating cost and maintenance
- Dust collection bin for safe fume dust disposal
- Pairs with xFUME® PRO and xFUME® TIG welding toches for a complete turnkey fume extraction solution
FEX PRO System Features:
Maintain or adjust flow on the fly
The variable control knob is designed for maximum precision. Whether an increase or reduction in suction is needed, the FEX PRO variable adjustment offers increased performance and control.
Easily serviced filter
Four locking clips on the FEX PRO attach the filter and filter housing to the chamber. Clean or swap with a new filter in minutes, making service tasks quick and efficient.

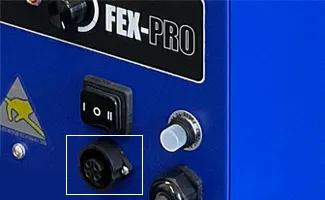

Automatic start-stop option
FEX PRO features an optional start-stop function to reduce strain on the motor and promote long-lasting high-performance filtration.
Product: | FEX PRO |
Max. airflow: |
117 CFM (~200 m3/h) |
Connections: | 1 Port |
Connection diameter: |
1.96 in (50 mm) |
Max. vacuum: | 23,000 Pa |
Noise level: | ≤ 60 dB (A) |
Voltage: |
115 V 50/60 Hz |
Motor power: | 1.1 kW |
Filter efficiency: | ≥ 99.99 % @ 0.1-0.3µm |
Cleaning: | Manual |
Automatic start/stop: | Optional |
Adjustable airflow: | Yes |
Weight: |
44 lbs (20.0 kg) |
Size: |
22.5 x 12 x 20.7 in 573 x 305 x 527 mm |
Pair with the best in class fume extraction torches.
xFUME®
Exclusively from ABICOR BINZEL
xFUME® PRO
For tough industrial environments where extraction at the source is a top priority. The torch can be connected to stationary or mobile fume extraction and is easily connected to the most widely used welding machines.
The ergonomic ball joint and slim front end add comfort and visibility while reducing strain on the welder. The slim front-end design and nozzle options give the welder a clear view of the arc and efficiently absorb fumes without affecting the protective shield gas.
- Streamlined access to weld joints
- Variety of suction shroud options to collect fumes in any weld position
- Air and liquid cooled options for welding up to 500A
- A protective cable shroud cover included
- Suitable for mobile fume extraction units including FEX PRO
xFUME® TIG
With air-cooled and liquid-cooled options, the xFUME® TIG is positioned as a well-rounded option in applications where users value the process for it's quality weld appearance and promote the standard of nearly fume free welding.
Long-lasting ceramics and a thin nozzle profile provide best in class extraction so users can maintain vision on their work and keep their environment breathable and safe.
- Reliable extraction of harmful fumes
- Outstanding ergonomics and handling
- Patented, combined ceramic protection and extraction nozzle for slim front end
- Excellent protective gas coverage
- Suitable for mobile fume extraction units, including FEX PRO
Discover more about fume extraction through engaging video insights
