xFUME® FG Series Fume Extraction MIG Guns
Fume Extraction MIG welding guns in the xFUME ® series remove harmful weld fumes and metal dust at the welding arc. Using a high-flow source capture torch design, xFUME® ensures welders and workers breathe the cleanest air possible while they work.
xFUME ® MIG Guns Features and Benefits:
- High-flow design collects more smoke than other fume extraction guns at the weld arc
- Direct extraction protects welder's breathing zone and plant air quality
- Lightweight cable and ergonomic design handle is 15% to 30% lighter than competitors
- Threaded, tapered front end welding consumables improve welder access and fume capture capability
- Ergonomic handle with fume extraction control and swivel joint optimizes comfort
- Suitable with flux-cored, solid, and metal-cored welding wire
- Variety of suction shroud options collect fumes effectively in any weld position
xFUME ® Features at a Glance:
Tapered Front End & Optimal Suction
xFUME's uniquely designed front end uses a tapered consumable profile for the most welder access possible. The shroud is placed further back from the nozzle to allow for greater suction and more smoke capture without gas loss.

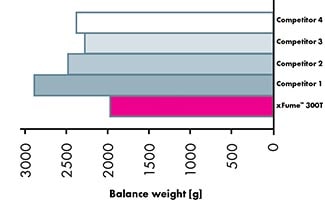

The lightest fume gun in the industry

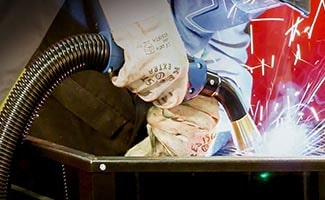

xFUME® MIG Guns are designed with the welder's comfort in mind. The slim handle design and swivel cable give the welder optimum comfort while in operation compared to other fume extraction guns on the market.

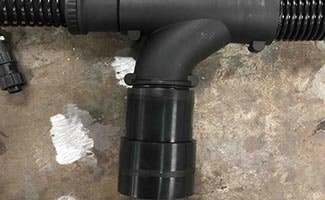

Y-Connect Back End for Improved Flow
The xFUME's rear design optimizes flow through the entire torch cable to capture the most smoke possible. The curved end lets smoke travel naturally and more effectively from the cable to the fume extraction system without losing smoke.
xFUME ® and Fume Extraction Videos:
xFUME ® MIG Torch Product Overview
What is Fume Extraction?
How Fume Extraction Torches Work
Why Do I Need Fume Extraction?
Recommended Reading:
- Fume Extraction System Problems and Solutions
- How to Test Your Fume Extraction System
- 5 Fume Extraction Questions You Should Know Before Starting
- Fume Extraction Units: Tell a Good One from the Rest
- Fume Extraction Filter Review: Picking the Best Filter for the Job
- 3 Problems with Contact Tips (and How to Overcome Them)
- Understanding Contact Tips
Catalog & Ordering Chart
| CONTACT TIPS | xFUME 250 | xFUME 300 | xFUME 500 |
|
M6 contact tip holder |
142.0003 | 142.0005 | 142.0008 |
|
M6 Standard Copper .030" |
140.0051 | 140.0051 | 140.0051 |
|
M6 Standard Copper .035" |
140.0169 |
140.0169 |
140.0169 |
|
M6 Standard Copper .040" |
140.0242 |
140.0242 |
140.0242 |
|
M6 Standard Copper .045" |
140.0379 |
140.0379 |
140.0379 |
|
M6 Standard Copper .052" |
— | 140.0516 | 140.0516 |
|
M6 Standard Copper .062" |
— | — |
140.0555 |
|
M6 Standard Copper for Aluminum Wire .030" |
141.0001 |
141.0001 |
141.0001 |
|
M6 Standard Copper for Aluminum Wire .035" |
141.0004 |
141.0004 |
141.0004 |
|
M6 Standard Copper for Aluminum Wire .040" |
141.0006 |
141.0006 |
141.0006 |
|
M6 Standard Copper for Aluminum Wire .045" |
141.0082 |
141.0082 |
141.0082 |
|
M6 Standard Copper for Aluminum Wire .052" |
— | 141.0019 | 141.0019 |
|
M6 Standard Copper for Aluminum Wire .062" |
— | — | 141.0020 |
|
M6 Heavy Duty Copper .030" |
140.0054 |
140.0054 |
140.0054 |
|
M6 Heavy Duty Copper .035" |
140.0172 |
140.0172 |
140.0172 |
|
M6 Heavy Duty Copper .040" |
140.0245 |
140.0245 |
140.0245 |
|
M6 Heavy Duty Copper .045" |
140.0382 |
140.0382 |
140.0382 |
|
M6 Heavy Duty Copper .052" |
— | 140.0519 | 140.0519 |
|
M6 Heavy Duty Copper .062" |
— | — |
140.0558 |
|
M6 Ultra Long Life Silver Plated .030" |
147.0054 | 147.0054 | 147.0054 |
|
M6 Ultra Long Life Silver Plated .035" |
147.0172 | 147.0172 | 147.0172 |
|
M6 Ultra Long Life Silver Plated .045" |
147.0382 | 147.0382 | 147.0382 |
|
M6 Ultra Long Life Silver Plated .052" |
— | 147.0519 | 147.0519 |
|
M8 contact tip holder |
— | 142.0020 | 142.0022 |
|
M8 Standard Copper .030" |
— |
140.0114 |
140.0114 |
|
M8 Standard Copper .035" |
— |
140.0214 |
140.0214 |
|
M8 Standard Copper .040" |
— |
140.0313 |
140.0313 |
|
M8 Standard Copper .045" |
— |
140.0442 |
140.0442 |
|
M8 Standard Copper .052" |
— |
140.0533 |
140.0533 |
|
M8 Standard Copper .062" |
— |
140.0587 |
140.0587 |
|
M8 Standard Copper .078" |
— |
140.0653 |
140.0653 |
|
M8 Standard Copper .094" |
— |
140.0677 |
140.0677 |
|
M8 Standard Copper for Aluminum Wire .030" |
— |
141.0003 |
141.0003 |
|
M8 Standard Copper for Aluminum Wire .035" |
— |
141.0043 |
141.0043 |
|
M8 Standard Copper for Aluminum Wire .040" |
— |
141.0008 |
141.0008 |
|
M8 Standard Copper for Aluminum Wire .045" |
— |
141.0075 |
141.0075 |
|
M8 Standard Copper for Aluminum Wire .052" |
— |
141.0055 |
141.0055 |
|
M8 Standard Copper for Aluminum Wire .062" |
— |
141.0022 |
141.0022 |
|
M8 Heavy Duty Copper .030" |
— |
140.0117 |
140.0117 |
|
M8 Heavy Duty Copper .035" |
— |
140.0217 |
140.0217 |
|
M8 Heavy Duty Copper .040" |
— |
140.0316 |
140.0316 |
|
M8 Heavy Duty Copper .045" |
— |
140.0445 |
140.0445 |
|
M8 Heavy Duty Copper .052" |
— |
140.0536 |
140.0536 |
|
M8 Heavy Duty Copper .062" |
— |
140.0590 |
140.0590 |
|
M8 Ultra Long Life Silver Plated .030" |
— | 147.0117 | 147.0117 |
|
M8 Ultra Long Life Silver Plated .035" |
— | 147.0217 | 147.0217 |
|
M8 Ultra Long Life Silver Plated .040" |
— | 147.0316 | 147.0316 |
|
M8 Ultra Long Life Silver Plated .045" |
— | 147.0445 | 147.0445 |
|
M8 Ultra Long Life Silver Plated .052" |
— | 147.0536 | 147.0536 |
|
M8 Ultra Long Life Silver Plated .062" |
— | 147.0590 | 147.0590 |
| DIFFUSERS | xFUME 250 | xFUME 300 | xFUME 500 |
|
Standard gas diffuser |
012.0183 | 014.0261 | 030.0145 |
|
High-temperature gas diffusers |
— | 014.0026 | 030.0037 |
| NOZZLES & FUME SHROUDS | xFUME 250 | xFUME 300 | xFUME 500 |
|
Threaded 13mm Tapered Nozzle |
317.0106 |
317.0374 | 317.0374 |
|
Threaded 16mm Tapered Nozzle |
— |
317.0102 |
317.0102 |
|
Threaded 17mm Cylindrical Nozzle |
317.0215 | — | — |
|
Threaded 18mm Tapered Nozzle |
— | 317.0369 | 317.0369 |
|
Threaded 20mm Cylindrical Nozzle |
— | 317.0214 | 317.0214 |
|
Threaded 22mm Fume Shroud Black Steel |
284.1061 | — | — |
|
Threaded 24mm Fume Shroud Black Steel |
— | 284.0734 | 284.0734 |
|
Threaded 24mm Fume Shroud Reverse Suction Black Steel |
— | 600.0116 | 600.0116 |
|
Slip-on 17mm cylindrical nozzle |
145.0047 |
— | — |
|
Slip-on 19mm cylindrical nozzle |
— |
145.0045 |
— |
|
Slip-on 20mm cylindrical nozzle |
— | — |
145.0051 |
|
Slip-on 10mm Conical Nozzle |
145.0128 |
— | — |
|
Slip-on 12mm conical nozzle |
— |
145.0126 |
— |
|
Slip-on 13mm Conical Nozzle |
145.0080 |
— | — |
|
Slip-on 14mm conical nozzle |
— | — |
145.0132 |
|
Slip-on 16mm conical nozzle |
— |
145.0078 |
145.0085 |
|
Slip-on 20mm Fume Shroud |
600.2005 | — | — |
|
Slip-on 24mm Fume Shroud |
— | 600.0462 | 600.0462 |
| LINERS | xFUME 250 | xFUME 300 | xFUME 500 |
|
Steel Wire Liner Insulated .024”-.035”, 17' Long |
124.0015 | 124.0015 | — |
|
Steel Wire Liner Insulated .035”-.045”, 17' Long |
124.9042 | 124.9042 | — |
|
Steel Wire Liner Insulated .052”-.062”, 17' Long |
— | 124.9043 | — |
|
Steel Wire Liner Insulated .035"-.045", 28' Long |
124.9015 | 124.9015 | |
|
Steel Wire Liner Insulated 0.52"-0.62", 28' Long |
124.9037 | 124.9037 | |
|
Steel Wire Liner Uninsulated .035”-.045”, 17' Long |
— | — | 122.9057 |
|
Steel Wire Liner Uninsulated .052”-.062”, 17' Long |
— | — | 122.9058 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 12' Long |
127.9007 | 127.9007 | 127.9007 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 17' Long |
127.9009 |
127.9009 |
127.9009 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 12' Long |
127.9001 |
127.9001 |
127.9001 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 |
127.9003 |
127.9003 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 12' Long |
— |
127.9004 |
127.9004 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 17' Long |
— |
127.9006 |
127.9006 |
| Type: | xFUME® 250 _ | xFUME® 300 _ | xFUME® 500 _ |
| rating | Air cooled | Air cooled | Water cooled |
| CO2 : _ | 250A | 300A | 500A |
| Mixed gases M21*: | 220A | 270A | 450A |
| Duty cycle (%): | 60 | 60 | 100 |
| Wire Ø: |
0.8 - 1.2mm .030" - .045" |
0.8 - 1.6mm .030" - .062" |
0.9 - 1.6mm .035" - .062" |
* according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). When pulse welding, reduce rating by 35%.
