ABICOOLER 1300 Welding Water Cooler
For Reliable Water-cooled Welding
The mobile welding water cooler unit ABICOOLER 1300 is the ideal complementary system to equip with your water-cooled welding torch; for reliable water-cooled welding. The ABICOOLER 1300 cooling unit is characterized by a high cooling performance in a compact design with easy handling. The standard integrated flow switch allows for permanent monitoring of the complete cooling system. This switch protects the system from operating without adequate coolant, protecting both the unit and the MIG or TIG welding guns.
ABICOOLER 1300 Water Cooler Features & Benefits:
- High cooling performance in a compact design is ideal for mobile use
- Integrated flow switch for the permanent monitoring of the complete cooling system for
protection of the welding gun and the cooling unit

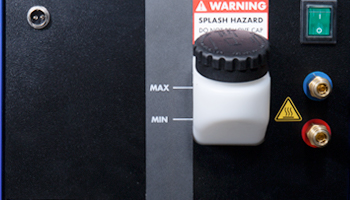

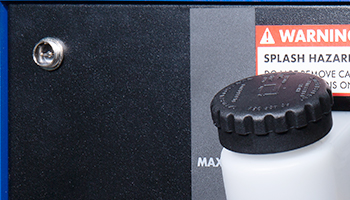

- Exposed tank with coolant level indicator for convenient filling and draining of the coolant
- High efficiency unit with two gallon tank capacity reduces cost of ownership
- Lightweight design and sturdy carrying handles for easy transport to the job location

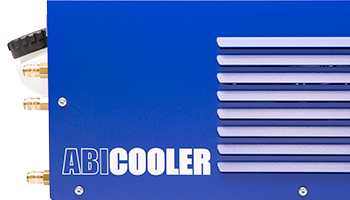

- Splash-proof fuse, power switch, and louvers
ABICOOLER 1300 Water Cooler Features at a Glance:
Optimized heat exchanger with pull-fan design, and automotive-style fan shroud supports up to 600A welding guns.
Integrated Safety Switch
The integrated safety flow switch provides constant flow monitoring to prevent overheating and costly damage.
Reduced Maintenance Cost
Due to the highly efficient design and a compact two-gallon tank, coolant usage is reduced.
ABICOOLER 1300 Water-cooler Part Numbers
ABICOOLER 1300 (for torches up to 600A)
ABI-Cool LC Coolant (1 gallon)*
|ABI-Cool ECO (1 gallon)*||
|Water Hose Installation/Extension Kit (10')||BWC-029|
|Water Hose Installation/Extension Kit (30')||BWC-028|
|External Water Filter (optional)||850.1066|
|*Priced per gallon and sold in 4 gallon case|
|Type||ABICOOLER 1300 (60Hz)|
|Cooling Capacity (Q = 1 l/min)||Up to 1.30 kW|
|Supply voltage||115 V AC|
|Max. Delivery Height of Pump Head||115ft / 35m|
|Max. Flow Rate of Pump Head||2.64 gal/min / 10 l/min|
|Max. Coolant Outlet/Pump Pressure||56.5 / 3.9 bar|
|Coolant Tank Capacity||2.11 gal / 8.0 l|
|Coolant||ABICOOL, BTC Series or other ABICOR BINZEL coolants|
|Sound Level||58.5 db(A)|
|Protection Type||IP 23 (suitable for indoor use only)|
|Dimensions (L x W x H)||26.38 x 11.82 x 12.6 in / 670 x 300 x 320 mm|
|Weight||48.5lbs / 22kg|
|Weight (Including Coolant)||66.14 lbs / 30kg|
*Mathematical approximate values.
