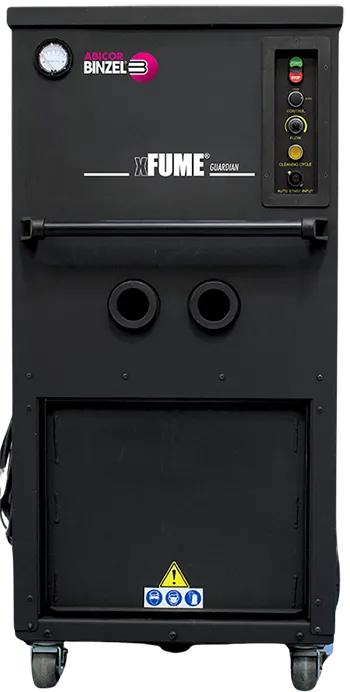

xFUME® GUARDIAN Fume Extraction System
xFUME® GUARDIAN is a powerful fume extraction unit built for heavy-duty welding. With a 6.2 HP brushless blower, MERV 16-rated filter and automatic pulse cleaning, it delivers clean air and reliable performance for fabrication, shipbuilding and mobile welding applications.
xFUME® GUARDIAN Features & Benefits:
- High horsepower motor and dual ports for up to two fume extraction torches
- VFD-controlled 6.2HP brushless side channel blower ensures high-performance extraction with automatic and manual airflow control
- Automatic air pulse and rotation nozzle cleaning extends filter and system lifetime
- 5-gallon dust bin with easy access for fast, minimal maintenance downtime
- Dirty filter gauge for filter capacity checks and remaining filter lifetime
- Durable composite wheels resist cracking and deliver reliable mobility on rough surfaces
- MERV 16-rated filter removes 95%+ of weld fume
xFUME® GUARDIAN System Features:

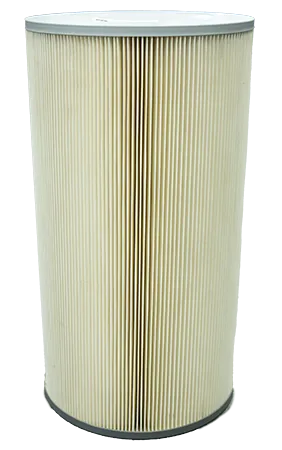

MERV 16-Rated Filter
MERV 16 filter with 108 sq ft media delivers superior air filtration capturing 95%+ of weld fumes for a healthier and more productive welding environment.
Multi-Function Control Panel
Automatic start/stops, weld detection, and automatic filter cleaning intervals minimize operator interventions.

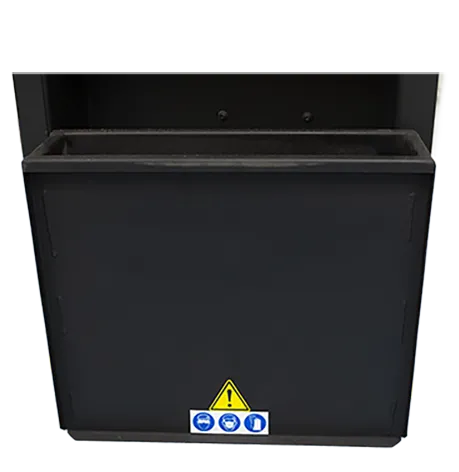

5-Gallon Dust Bin
5-gallon dust collection tray simplifies waste disposal and lengthens maintenance intervals.

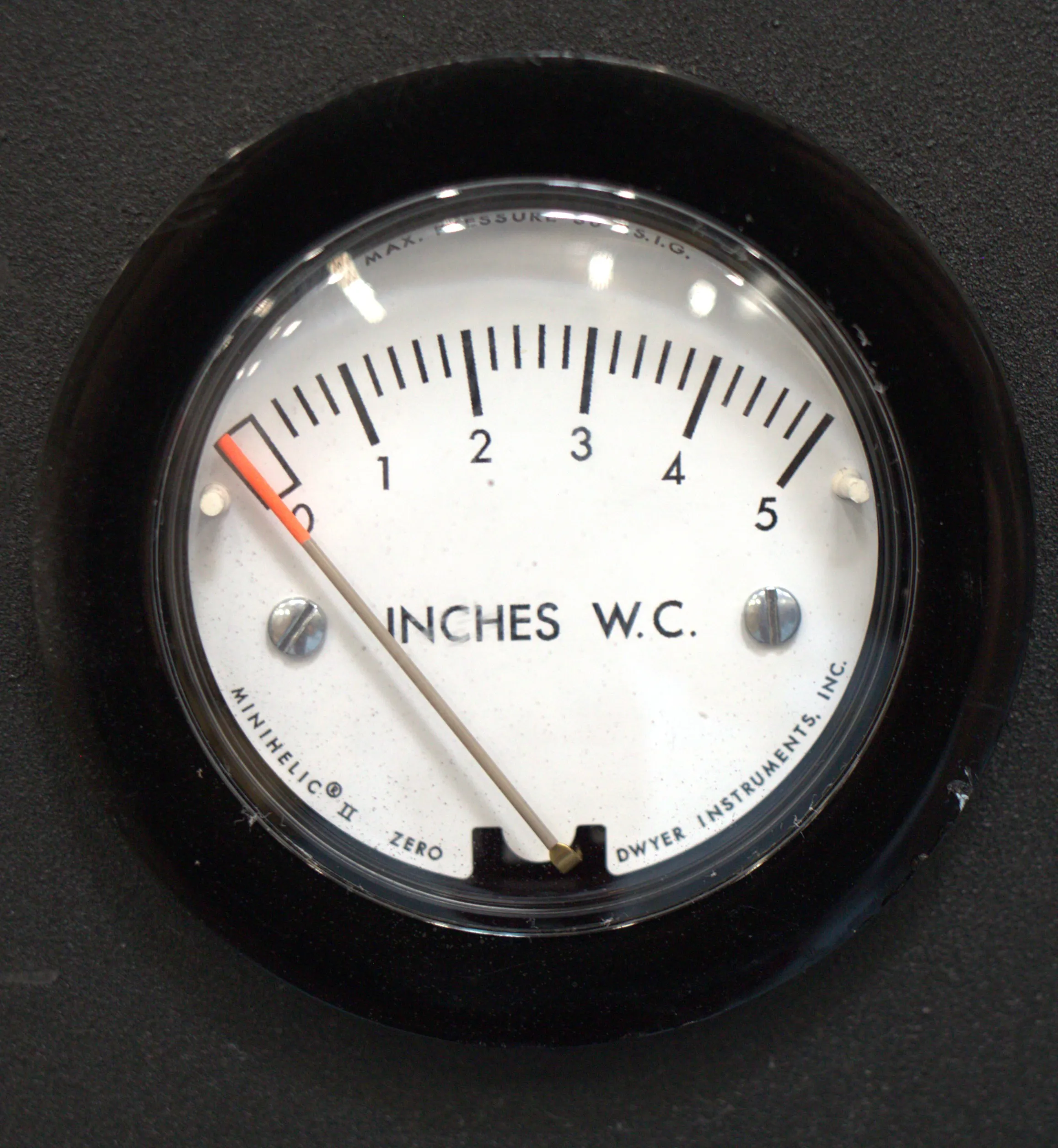

Dirty Filter Gauge
Easily monitor filter performance and lifetime with the dirty filter gauge, ensuring peak system and filter efficiency.
Variable Frequency Drive
Built-in VFD dynamically adjusts motor speed, minimizing power consumption, resulting in reduced electricity costs and extended motor efficiency.
Filter Rotation Nozzle
An automatic air pulse self-cleaning filter with a rotation nozzle automatically cleans and prolongs the filter and system's lifetime.
Pair with best in class fume extraction torches:
xFUME® GUARDIAN is compatible with other third-party torches.
What is Fume Extraction?
Why Do I Need Fume Extraction?
Recommended Reading:
xFUME® GUARDIAN
| DESCRIPTION | PART NUMBER |
| xFUME® GUARDIAN 460V CPL | 601.0542.1 |
| xFUME® GUARDIAN 575V CPL | 601.0543.1 |
| DESCRIPTION | PART NUMBER |
| Filter Cartridge E11 GUARDIAN | 601.0544 |
| Rotation Nozzle GUARDIAN | 601.0545 |
| GENERAL | xFUME® GUARDIAN |
| Type: |
High vacuum |
| Enclosure Rating: | IP21 |
| Number of Fume Connections: |
Two 50mm ports (mates with 601.0116 cuff) |
| Operating Sound Level: | 92 dB |
| Unit 'Duty Cycle': | 100% (continuous duty) |
| Dust Bin Capacity: | 5 Gallons [19 L] |
| Weight: | 350 lbs [ 160 kg ] |
| Size: |
49.2 x 29.5 x 35.2 in 1250 x 750 x 895 mm |
| Filter Media Area: | 108 ft2 [10m2 ] |
| Cleaning Type: | Automatic air pulse with rotating nozzle |
| Compressed Air Consumption: | 53 CFM [ 90 CMH ] at 100 PSI [ 6.9 bar ] |
| Compressed Air Pressure: | 73-226 PSI [ 5 bar - 8 bar ] (filter & regulator included as standard) |
| Compressed Air Connection: | 3/8 coupling male industrial quick connect plug per ISO 6150 B |
| Input Power: | 460V/3Ph/60Hz |
| Rated Current Draw: | 13.4A (FLA) |
| Power Connection: | 20 ft [ 6m ] L 16-30P NEMA plug |
| Rated Power Motor: | 6.17 HP [ 4.54 kW ] |
| Maximum Airflow: | 254 CFM [ 432 CMH ] |
| Maximum Pressure: | *Vacuum relief safety valve setting: 24.9 kPa [ 100 in. WG ] |
