MIG/MAG Welding Torch System ABIROB® W
Robust & flexible ...

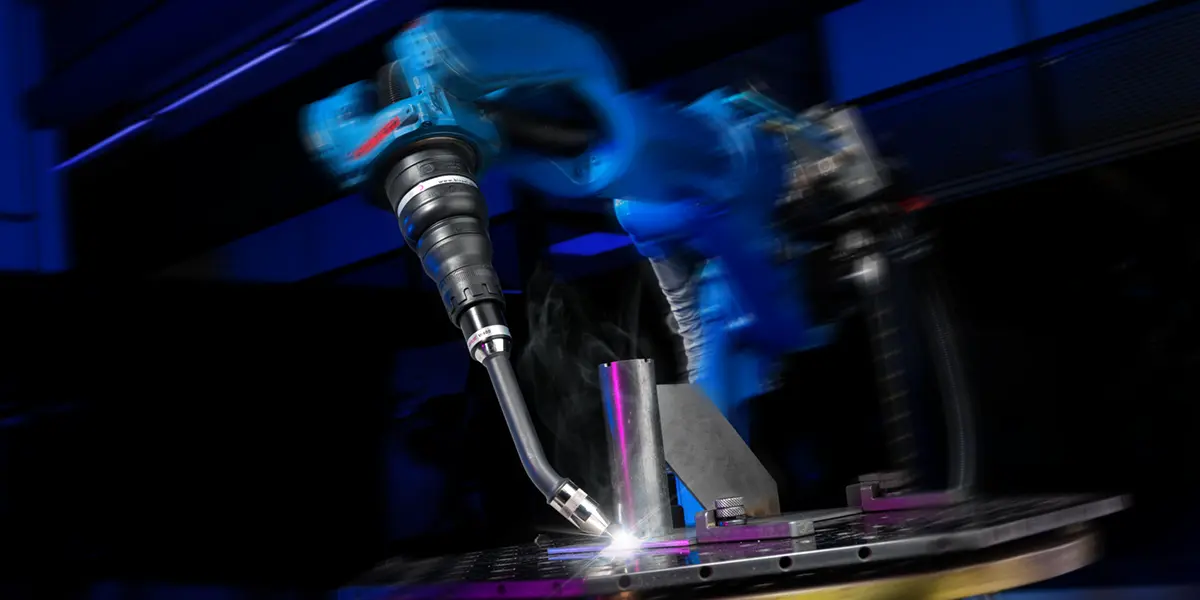

Pure ROBO power! Liquid-cooled ABIROB® W welding torches have power ratings up to 600 A and are equipped with state-of-the-art cable assembly and interface technology. The modular design of these rugged yet flexible torches allows a fast change of torch neck and cable assembly components without the TCP (Tool Centre Point) changing – thus avoiding additional programming effort.
High repetitive accuracy and a continuously precise welding process are ensured through the innovative but “simple” torch construction.
All information at a glance
Advantages that speak for themselves:
- Robust torch necks with screw-on gas nozzle and replaceable contact tip holder guarantee high durability and a long service life cycle
- The innovative interface design ensures the fast change of torch neck and reproducible positioning of cable assembly and torch neck
- Hybrid cable assembly technology for optimized wire feeding, prevention of electrolytic corrosion and improved coolant flow
- Special torch neck geometries are available for joining components even with limited accessibility
Application areas:
- Commercial vehicle construction
- Earth-moving equipment
- Rail vehicle construction
- Shipbuilding
- Container construction
- Machine and steel construction
- Aerospace industry
Material:
- Construction steels (coated / non-coated)
- Chrome-nickel steels
- Duplex steels
- Nickel basic materials
- Mixed compounds
- Aluminium materials
- Magnesium materials
- Copper materials
- Special materials
Robot interface:
- Conventional robot (Cable assembly external):
− Robot mount CAT3 PRO
− Fixed bracket RTM - Hollow wrist robot (Cable assembly internal):
− Robot mount iCATmini
− Bracket iSTM (for robots with integrated collision software) - Hollow wrist robot (Cable assembly external):
− Robot mount CAT3 PRO
− Fixed bracket RTM
Technical data according to EN 60974-7:
| Type: | ABIROB® W 50 | ABIROB® W 300 | ABIROB® W 400 | ABIROB® W 500 | ABIROB® W 600 |
| Cooling: | liquid cooled | liquid cooled | liquid cooled | liquid cooled | liquid cooled |
| Rating: | |||||
| CO2: | 550 A | 330 A | 470 A | 550 A | 600 A |
| Mixed gases M21*: | 500 A | 300 A | 400 A | 500 A | 550 A |
| Duty cycle (%): | 100 | 100 | 100 | 100 | 100 |
| Wire-Ø (mm): | 0.8 - 1.6 | 0.8 - 1.2 | 0.8 - 1.6 | 1.0 - 1.6 | 1.0 - 1.6 |
| Torch angle: | 0°/ 22° / 35°/ 45° | 45° | 0°/ 22° / 35°/ 45° | 0°/ 22° / 35°/ 45° | 0°/ 22° / 35°/ 45° |
* Mixed gases M21 (according to DIN EN ISO 14175)
