Establishing the Power Supply

Note the safety instructions. Safety Instructions for the Electrical Power Supply

WARNING

warning

Electric shock due to damaged or improperly installed cable

The use of damaged or improperly installed cables may result in a potentially fatal electric shock.

  1. Check all live cables and connections for proper installation and damage.
  2. Have any damaged, deformed, or worn parts replaced by a qualified electrician only.

WARNING

warning

Fire hazard due to improper mains connection

A fire can be caused by an improper mains connection. Serious burns can be the result.

  1. Make sure that the operating voltage stated on the rating plate matches the mains voltage.

For mains connection and fuse protection, see:

Technical data

Circuit diagram 115 V

Circuit diagram 230 V

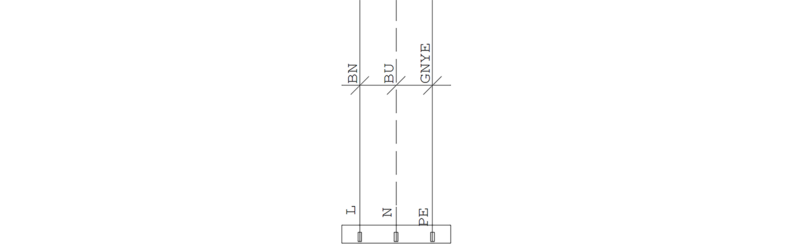

The mains plug is not attached to the power supply cable.

Attach an appropriate mains plug (customer-specific) to the power supply cable and plug it in.

The mains plug is attached to the power supply cable.

Plug in the mains plug.
