Disassembly

CAUTION

caution

Risk of injury due to unexpected start

If power is supplied during maintenance, cleaning or disassembly, rotating parts can start running unexpectedly and lead to injuries from cuts.

  1. Switch off the device.
  2. Disconnect all electrical connections.
  1. Disconnect the compressed air supply.

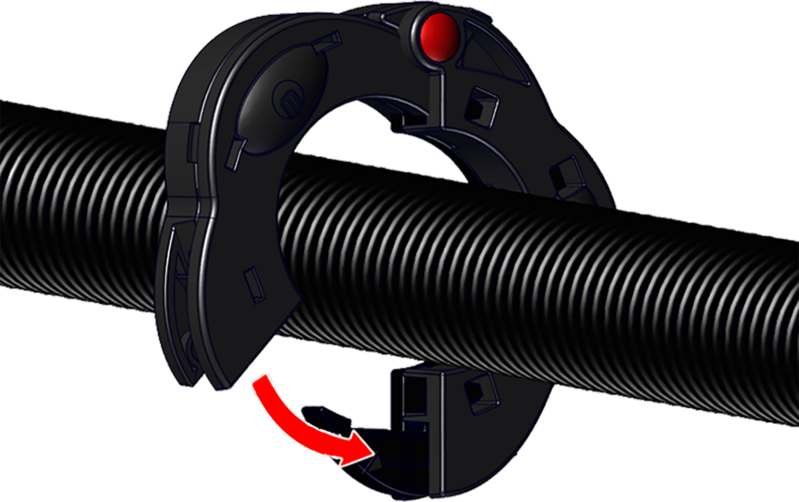

  2. Remove the current clamp from the cable assembly.

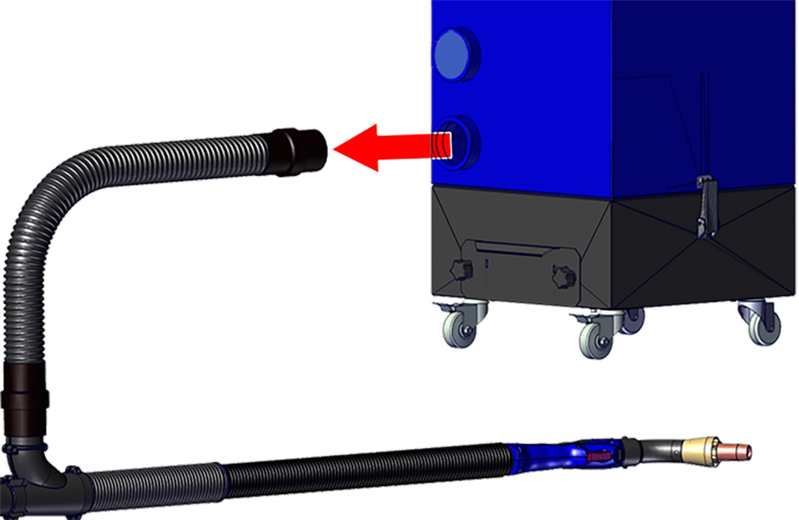

  4. Remove the extraction hose(s).
  6. Loosen the tension locks on both sides.
  8. Remove the housing and set to the side.

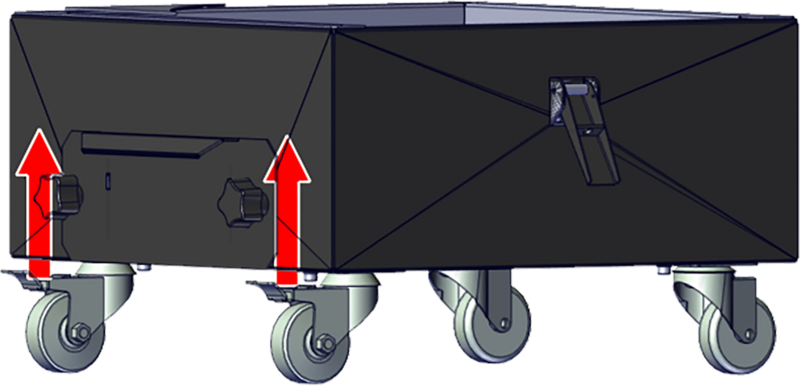

  9. Loosen the castors.
