Replacing the extraction arm

NOTE

notice

Reduced extraction capacity due to a defective extraction hose

Damage to the extraction hose and leaks negatively impact extraction performance.

  1. Check the extraction hose regularly and change it as needed.
  1. Fold the upper end of the sleeve on the extraction hood so that the clamp is accessible.

  2. Undo the clamp screw.

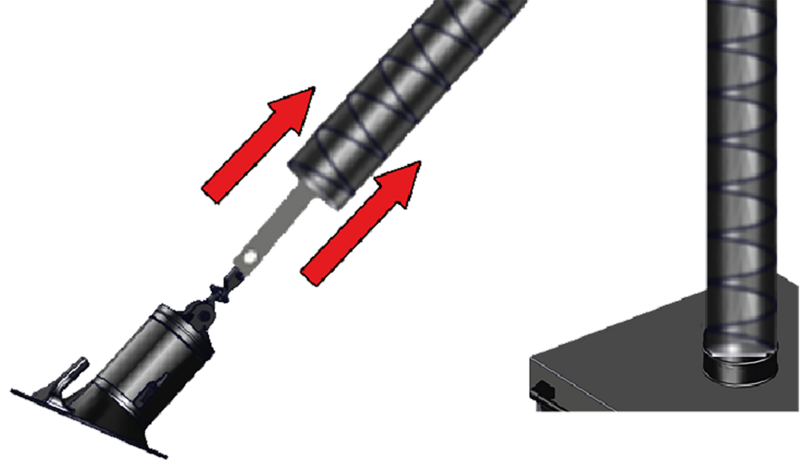

  3. Retract the extraction hose.
  5. Cut open the cable tie.

  6. Disconnect the cable connections.

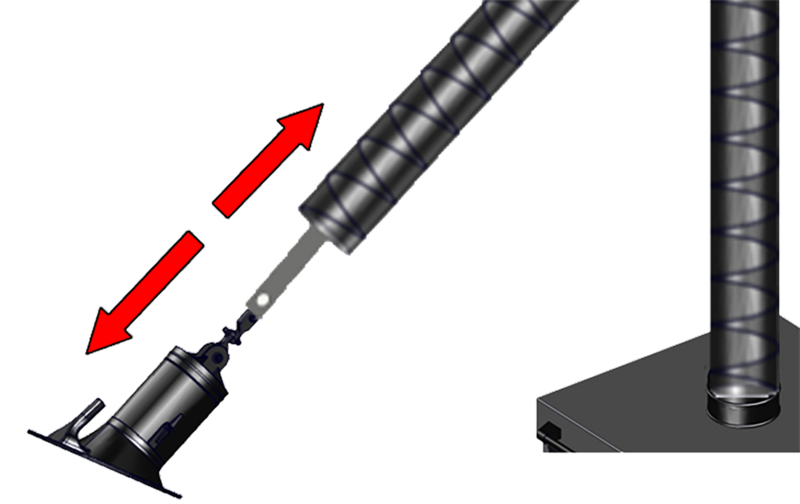

  8. Loosen the screw between the connector and profile tube and remove the extraction hood.
  10. Fold the upper end of the sleeve on the device so that the clamp is accessible. Undo the clamp screw.

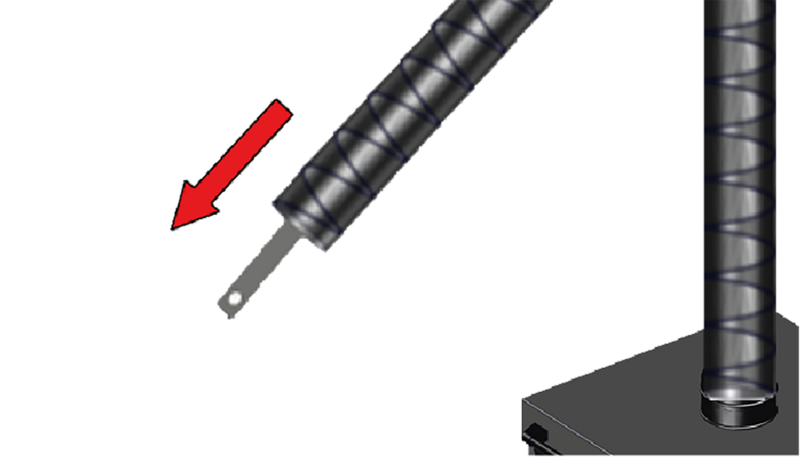

  11. Remove the extraction hose in the direction shown and replace it by a new one.
