Fitting the Extraction Hose

A maximum of two fume extraction devices may be attached to the device. If only one fume extraction device is connected, the cap for the second connector should be closed to ensure optimal extraction.

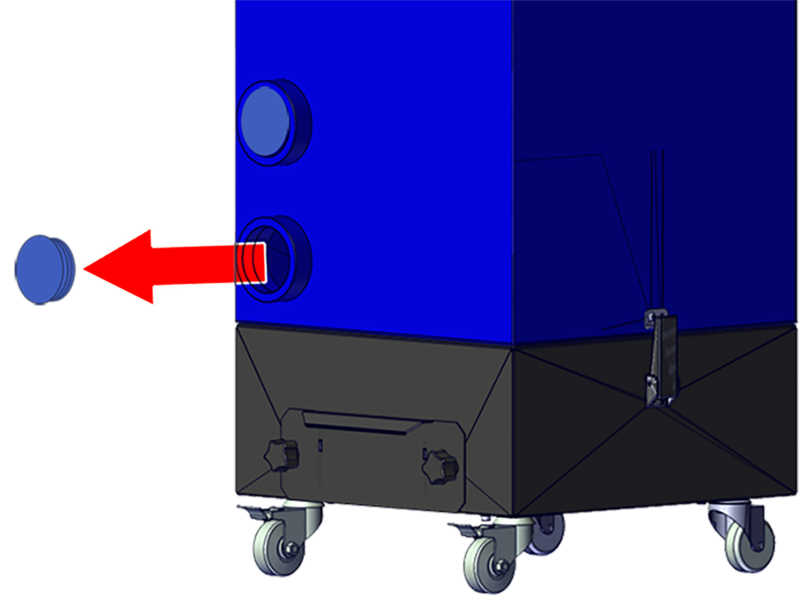

  1. Remove the sealing plug from the air extraction fitting.

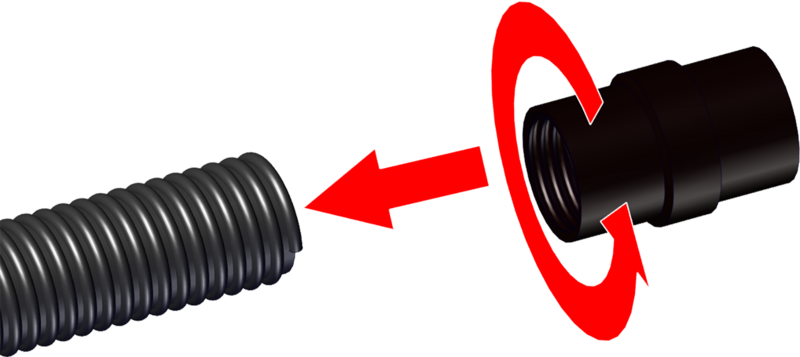

  3. Screw the connectors on both ends of the extraction hose.

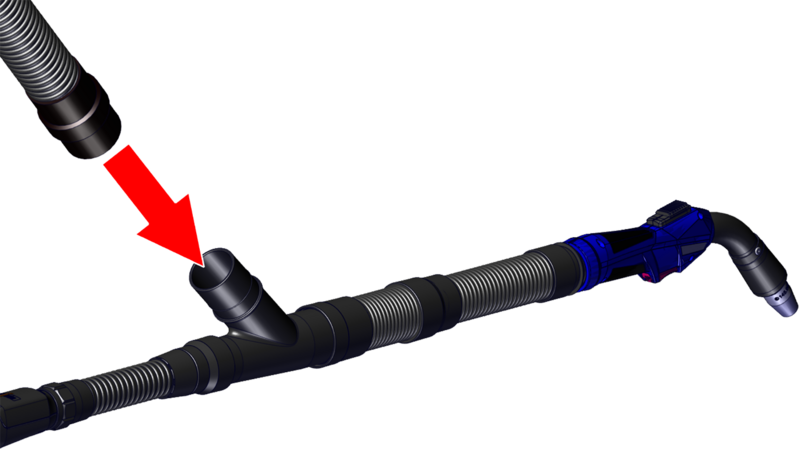

  5. Connect one end of the extraction hose to the connection on the cable assembly of the fume collection device (for example fume extraction torch).

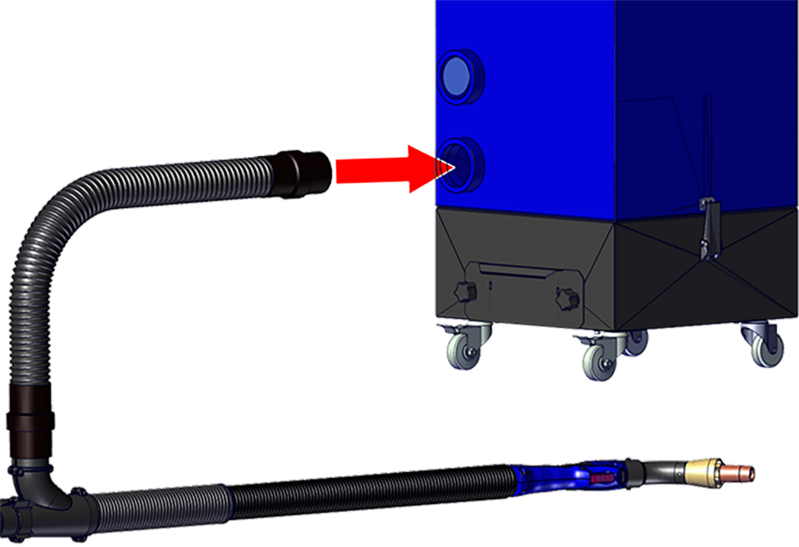

  7. Connect the other end of the extraction hose to the air extraction fitting of the device.
