Manual operation

The device is operated in manual mode (deactivated automatic start/stop mechanism) as follows:

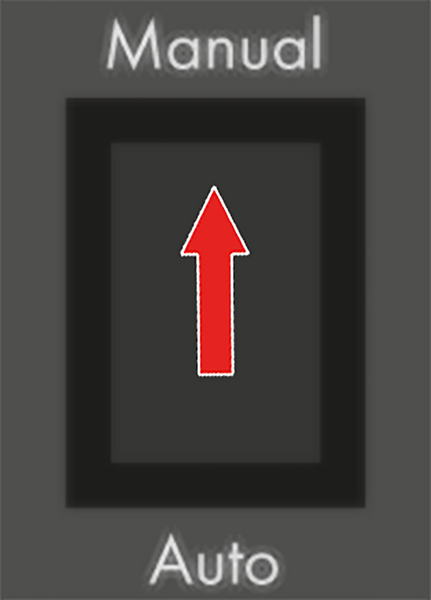

  1. To deactivate the automatic start/stop mechanism, set the <Auto/Manual> switch to <Manual>.

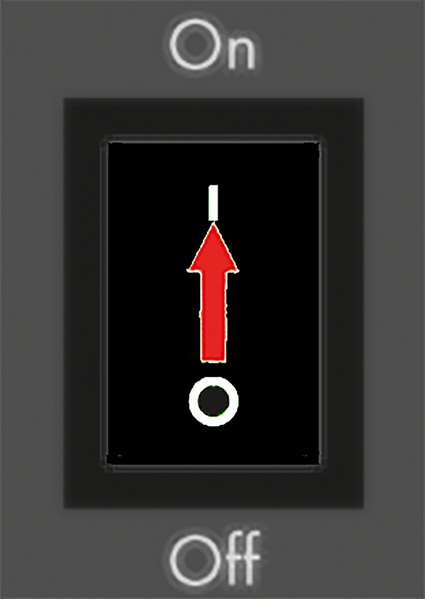

  3. Set the <On/Off> switch to <On>.

    4. The filter membranes are cleaned once. Continuous extraction is started.

Running the cleaning process

The filter membranes must be cleaned regularly to maintain continuous extraction. The cleaning interval depends on the welding process. We recommend that the filter membranes are cleaned every 2 hours, however no later than when the service LED illuminates. The service life of the filter membranes can be lengthened if they are cleaned before the service LED illuminates.

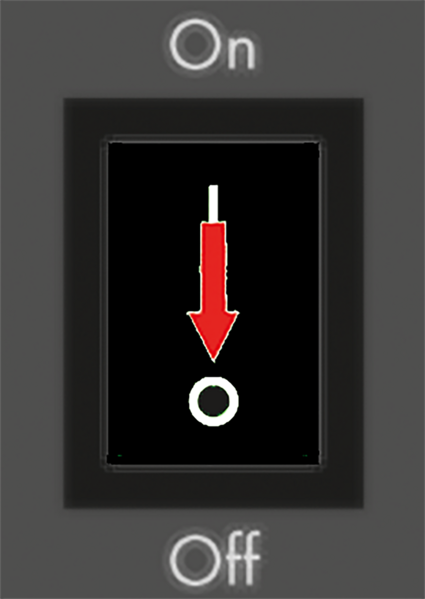

  1. Briefly set the <On/Off> switch to <Off>.
  3. Set the <On/Off> switch to <On>.

    4. The filter membranes are cleaned once. Continuous extraction is started.
