Attaching the compressed air hose

  1. To prevent a leak at the compressed air connection, seal the thread of the compressed air connection with PTFE tape. Wind the PTFE tape tightening direction (clockwise).

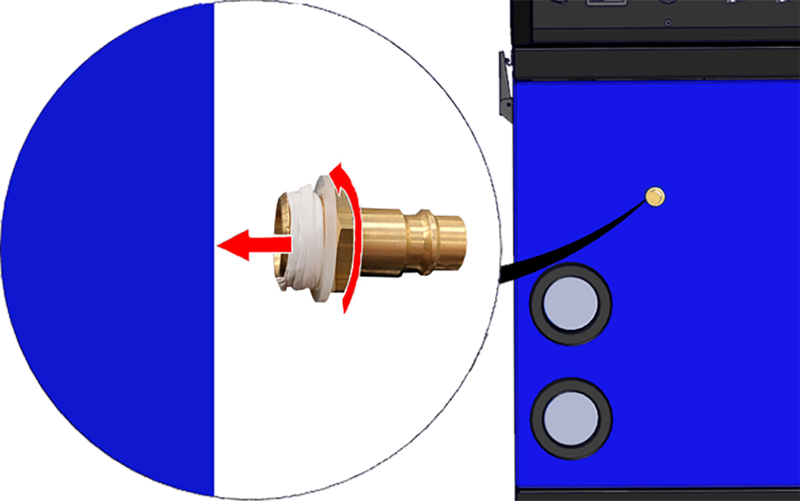

  2. Screw in the compressed air connection including sealing ring.

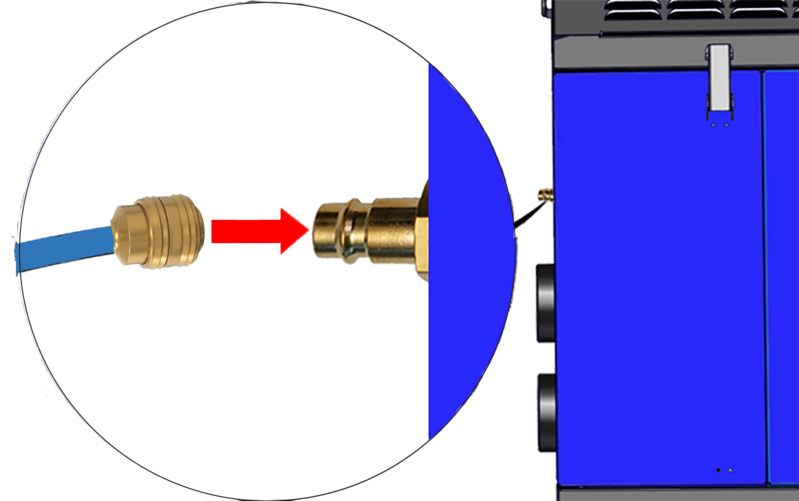

  4. Mount the compressed air hose on the compressed air connection and connect to the compressed air supply. Use a compressed air hose with an inside diameter of a minimum of 9 mm and a maximum length of 5 m.
